Features:
Small size makes it convenient for various DIY, can quickly detect and set the virtual position of the , observe the jitter of the , and use a single-chip computer for precise control.
The knob can be used to detect the, drive electrical adjustment, etc.
If an electronic speed regulator (brushless or brushless) is connected, manual speed regulation can be performed without the need for a remote control device for testing and adjustment.
The performance of the speedometer or engine is very convenient, eliminating the cumbersome connection between the remote control and the receiver. Equivalent to the "manual receiver" function, the simulated transmitter turns the rudder through the knob
Instructions: This tester has an integrated step-down circuit, which can be directly connected to 1S2S3S45S6S batteries (3-26V is recommended to be 16VI)
Add BEC, simple wiring
electric tuning tester
Can be used for DIY brushless power fans and other application scenarios
Support for PWM signal input to achieve precise speed regulation
Wide voltage range, suitable for 3V-26V power input
Compact structure, simple to use, easy to install and maintain
Specifications:

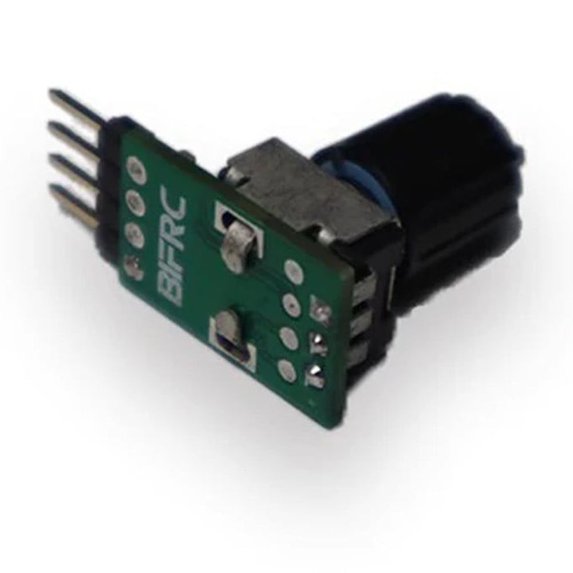

Product name: Rotary potentiometer
Size: PCB size: 19*12mm
Material: PCB board
Color: as shown in the figure
Current: ≤15mA (5.0)
Input: DC3-26v
Output signal: 1.5ms±0.5ms
Cycle frequency 50hz, duty cycle 900-2100us
Package Content:
A: No-weld pin header speed regulator
B: Welding needle speed regulator
C: Welding wire
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
