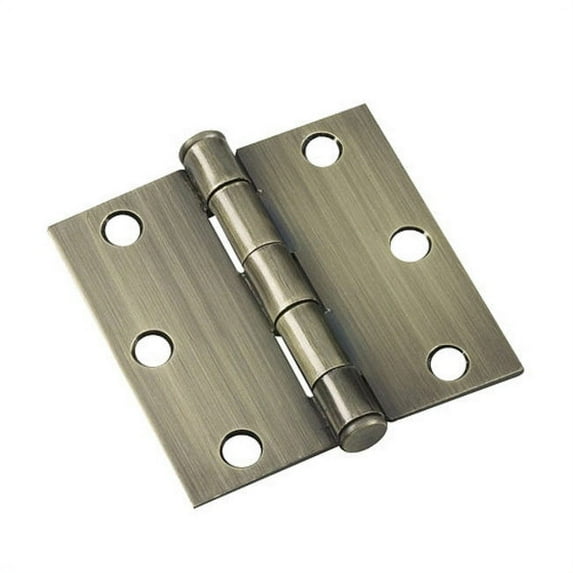

Richelieu 820-B 3" X 3" Plain Bearing Square Corner Mortise Door Hinge - Brass

Features:

• Includes two hinges (2) in each order
• Features precisely machined square corners
• Tested for residential and commercial strength application
• Features a removable pin, allowing you to easily remove your door without having to uninstall the hinges.
• Packaged with wood screws for simple, out of the box installation
• Constructed with 6 screw holes in an arc arrangement for maximum mounting strength

Product Technologies:

• Plain Bearing Hinge: Plain bearing hinges feature knuckles that are machined to a smooth surface, allowing them to move against one another without bearings. Plain bearing hinges are not recommended for heavy use on high traffic entrance ways, but meet the need of a standard residential door.

• Material Type: Steel is cheap, strong, and durable, making it a favorite for hinges of all types, despite it being slightly more prone to rusting than solid brass or stainless steel.

• Mortise Hinges: Mortise door hinges mount flush with the surface of your door, providing maximum strength with the least interference with door functionality. It is recommended that three hinges be used on doors up to and including 7-1/2 feet, with one additional hinge for each additional 2-1/2 feet. Be sure to check your current hinges before making a purchase.

Specifications:

• Height: 3"
• Width: 3"
• Material: Steel
• Mounting Type: Mortise
• Gauge: 0.0938"
• Number of Knuckles: 6
• Number of Screw Holes: 5
