Raspberry CM5 Compute Module IO Baseboard Compute Module 5 Basic Expansion Board

Raspberry CM5 Compute Module IO Baseboard Compute Module 5 Basic Expansion Board NANO Type A Type B

Features:

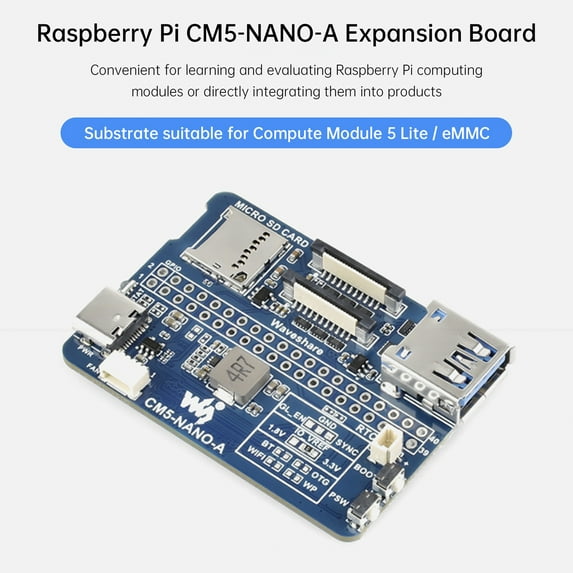

Raspberry Pi CM5-NANO-A expansion board, convenient for learning and evaluating Raspberry Pi computing modules or directly integrating into products, Compute Module 5 Lite/eMMC suitable baseboard
Same size as CM5, compact, fully functional, integrated with multiple peripheral interfaces, suitable for application scenarios with limited space

Type A Specifications:
Applicable models: All versions of Compute Module 5
Connector: Raspberry Pi 40PIN GPIO interface x1
USB: USB 3.2 Gen1 Type-A interface x1
MIPI interface: MIP| 4-lane x2 (22PIN 0.5mm FPC connector
Storage: Onboard Micro SD card slot (for versions without eMMC)
Power input: 5V
Dimensions: 55 x40 (mm)

Type B Specifications:
CM5 card holder: Applicable to all versions of Compute Module 5
Networking: Gigabit Ethernet RJ45 interface
Connector: Raspberry Pi 40PIN GPIO Interface x1
USB:USB 3.2 Gen1 Type-A interface x1
MIPI:MIP| 4-lane interface x2 (22PIN 0.5mm FFC connector)
Video:Mini HDMI interface x1, supports 4K output
Audio:USB audio 3.5mm headphone jack
Storage:Onboard Micro SD card slot (for version without eMMC)
Power input:DC 5V 5A
PCle:16PIN PCle (PCle Gen2/3 x1)
Size:56 x 41 (mm)

Note:
This product does not include the CM5 in the picture. If necessary, please purchase it separately

Package Included:
Option1:
1 x Type A NANO expansion board
2 x 20PIN color straight pin headers
Option2:
1 x Type B NANO expansion board
2 x 20PIN color straight pin headers
