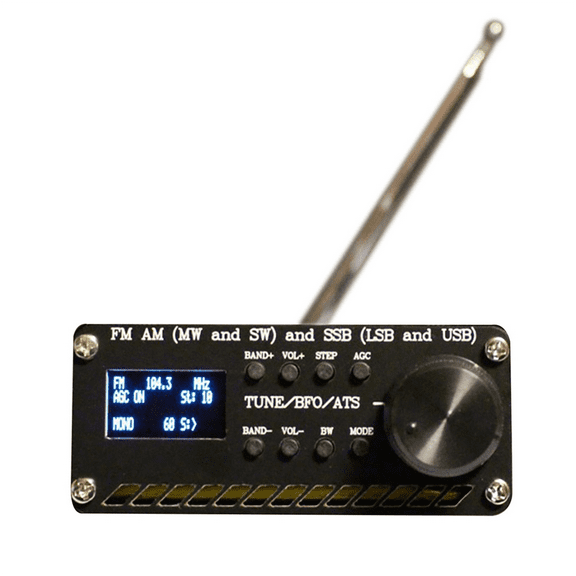

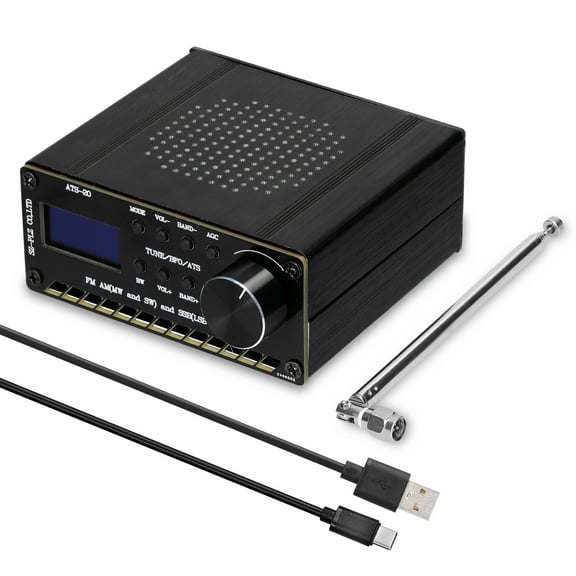

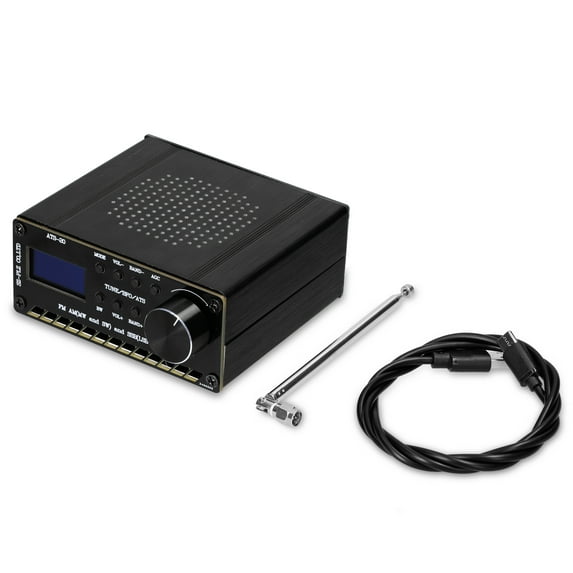

ATS-20 SI4735 Full Waveband Radio Receiver FM AM (MW & SW) SSB (LSB & USB) Covering Commercial Amateur Radio Bands BFO Control. Equipped with audio output function, support 3.5mm earphone. Support USB recharging, delivering with type-c recharging cable. Frequency step switch (1, 5 and 10KHz). Antenna interface uses SMA interface and printed circuit board retains SI4735 package, you can replace chip by yourselves, and software is compatible. , AM (MW and SW) and SSB (LSB and USB). Support auto-hold setting function after failure. With built in 3.6V, 600mAH polymer battery for stable and sustainable supplys. Also support 4ohm speaker 2W output. Audio bandwidth filter 0.5, 1, 1.2, 2.2, 3 and 4Khz. 0.96 inch OLED display, you can see band, AGC on/off, MONO according to your demands. With 22 commercial and amateur radio bands pre configured, you can use it freely.

This is a kind of quality full waveband radio receiver, 0.96 inch OLED display, support auto-hold setting function after failure. Equipped with audio output function, support 3.5mm earphone. Also support 4ohm speaker 2W output. With 22 commercial and amateur radio bands pre configured, you can use it freely. You can have a try.

Specifications:
Name: Radio Receiver
Material: printed circuit board


Band:
{FM_BAND_TYPE, 8400, 10800, 10430, 10},
{LW_BAND_TYPE, 100, 510, 300, 1},
{MW_BAND_TYPE, 520, 1720, 810, 10},
{SW_BAND_TYPE, 1720, 3500, 1900, 1}, // 160 meters
{SW_BAND_TYPE, 3500, 4500, 3700, 1}, // 80 meters
{SW_BAND_TYPE, 4500, 5500, 4850, 5},
{SW_BAND_TYPE, 5500, 6300, 6000, 5},
{SW_BAND_TYPE, 6300, 7800, 7050, 5}, // 40 meters
{SW_BAND_TYPE, 7800, 10000, 9600, 5},
{SW_BAND_TYPE, 10000, 11000, 10100, 1}, // 30 meters
{SW_BAND_TYPE, 11000, 12500, 11940, 5},
{SW_BAND_TYPE, 12500, 13900, 13600, 5},
{SW_BAND_TYPE, 13900, 14500, 14270, 1}, // 20 meters
{SW_BAND_TYPE, 14500, 15900, 15300, 5},
{SW_BAND_TYPE, 15900, 17900, 17600, 5},
{SW_BAND_TYPE, 17900, 18300, 18100, 1}, // 17 meters
{SW_BAND_TYPE, 18300, 21900, 21200, 1}, // 15 meters
{SW_BAND_TYPE, 21900, 26200, 24940, 1}, // 12 meters
{SW_BAND_TYPE, 26200, 27900, 27500, 1}, // CB band (11 meters)
{SW_BAND_TYPE, 27900, 30000, 28400, 1}}; // 10 meters

Packing List:
1 * Radio Receiver
1 * Type-C Cable
1 * Antenna


Item size: 89 * 107 * 41mm / 3.50 * 4.21 * 1.61in
Item weight: 205g / 7.23ounce
Package size: 173 * 122 * 52mm / 6.81 * 4.80 * 2.05in
Package weight: 250g / 8.82ounce
