Hero image 0 of R502S Fingerprint Module Capacitive Fingerprint Module Sensor Scanner Fingerprint Recognition Module with RGB Light, 0 of 8
R502S Fingerprint Module Capacitive Fingerprint Module Sensor Scanner Fingerprint Recognition Module with RGB Light
(No ratings yet)
Key item features
- Seven-color lights, freely set
- Multiple communication interfaces to meet more application needs
- 150 fingerprints
- Image pixels are 160 x 160
- Quick identification, accurate comparison
Specs
BrandUnbranded
ColorAs Shown
Price when purchased online
Not Available
How do you want your item?
Not available
About this item
Product details
Working voltage: DC 3.3V
Standby current (finger detection): Typical touch standby voltage: 3.3V Average current: 2uA
Working current (fingerprint collection): 20mA
Power-on time: ≤50ms
Image size: 160 x 160 pixel
Collection area: 15.5mm diameter
Image resolution: 508 dpi
Template size: 2KB
Time to generate feature points: Less than 500 ms
Comparison time: 1:NLess than 10ms/fingerprint
Storage capacity: 150 pieces
False acceptance rate (FAR): ≤0.001%
False rejection rate (FRR): 51%
Working temperature: -20℃ ~+60℃
Storage temperature: -40℃ ~+75℃
Working humidity: 10%~85% (no condensation)
Storage humidity: Less than 85% (no condensation)
Material: Alloy
Color: As shown
Package Contents:
1 x Fingerprint Module
1 x FPC Cable
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Standby current (finger detection): Typical touch standby voltage: 3.3V Average current: 2uA
Working current (fingerprint collection): 20mA
Power-on time: ≤50ms
Image size: 160 x 160 pixel
Collection area: 15.5mm diameter
Image resolution: 508 dpi
Template size: 2KB
Time to generate feature points: Less than 500 ms
Comparison time: 1:NLess than 10ms/fingerprint
Storage capacity: 150 pieces
False acceptance rate (FAR): ≤0.001%
False rejection rate (FRR): 51%
Working temperature: -20℃ ~+60℃
Storage temperature: -40℃ ~+75℃
Working humidity: 10%~85% (no condensation)
Storage humidity: Less than 85% (no condensation)
Material: Alloy
Color: As shown
Package Contents:
1 x Fingerprint Module
1 x FPC Cable
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
- Seven-color lights, freely set
- Multiple communication interfaces to meet more application needs
- 150 fingerprints
- Image pixels are 160 x 160
- Quick identification, accurate comparison
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Brand
Unbranded
Color
As Shown
Has written warranty
No
Similar items you might like
Based on what customers bought
Waterproof IP65 Proximity RFID ID Card Door Access Control Keypad Reader Wiegand 26 Bit for Security Systems A $16.57
$1657current price $16.57Waterproof IP65 Proximity RFID ID Card Door Access Control Keypad Reader Wiegand 26 Bit for Security Systems A
Qr /1D/2D/Code Scanner V3.0 Barcode Scan Recognition Module Serial Communication Uart Interface Usb Keyboard Input $19.14
$1914current price $19.14Qr /1D/2D/Code Scanner V3.0 Barcode Scan Recognition Module Serial Communication Uart Interface Usb Keyboard Input
SP107E DC5-24V LED Music Controller with Wireless Bluetooth-Compatible SPI Full Color Music Control By Phone APP $15.66
$1566current price $15.66SP107E DC5-24V LED Music Controller with Wireless Bluetooth-Compatible SPI Full Color Music Control By Phone APP
60Pcs TTP223 Touch Sensor Touch Button Module Self -Lock -to -Point Capacitance Switch y10539 $8.93
$893current price $8.9360Pcs TTP223 Touch Sensor Touch Button Module Self -Lock -to -Point Capacitance Switch y10539
20 * NFC Card-Red $14.20
$1420current price $14.2020 * NFC Card-Red
WS2812B LED Controller Bluetooth APP Control Music for SK6812 WS2811 WS2812 Pixel Light Strip USB 5V $6.82
$682current price $6.82WS2812B LED Controller Bluetooth APP Control Music for SK6812 WS2811 WS2812 Pixel Light Strip USB 5V
10pcs NTAG213 NFC Sticker ISO 14443A 13.56MHZ RFID Programmer Chip Universal $13.82
$1382current price $13.8210pcs NTAG213 NFC Sticker ISO 14443A 13.56MHZ RFID Programmer Chip Universal

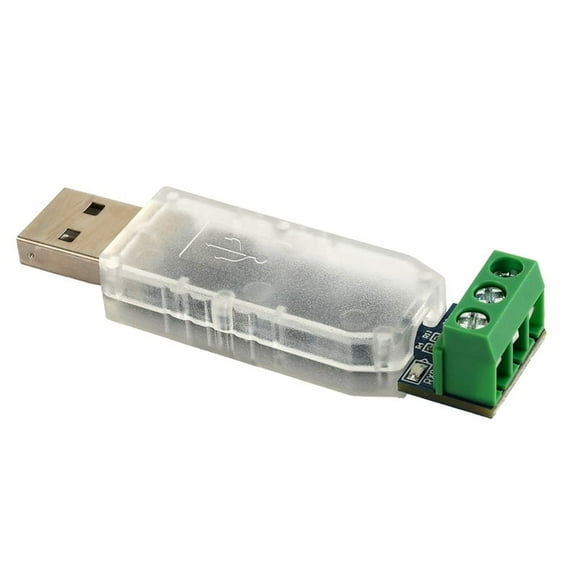

LIN Bus Analysis Controller USB to Debugger Analyzer(1PCS) $15.72
