Pure Sine Wave Inverter

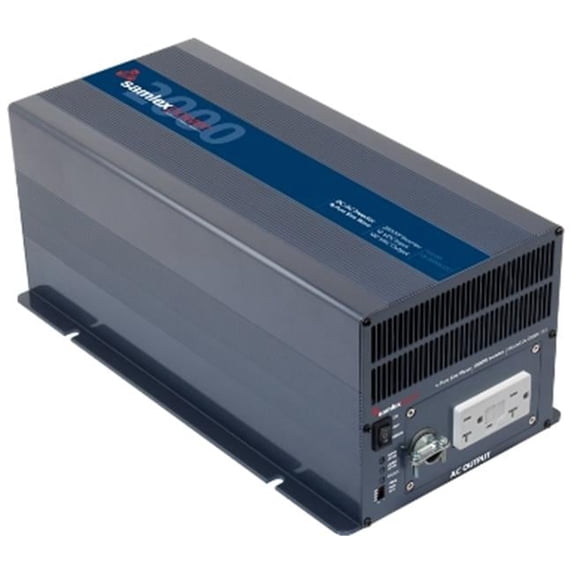

This high efficiency microprocessor controlled DC-AC inverter converts 12 Volts DC (Nominal) to 2000 watts of pure sine-wave AC power at 120 Volts, 60 Hz.

• Pure sine wave output (THD < 3%)
• Switch selectable output frequency - 50 / 60 Hz
• Switch selectable Power Save Mode wherein the inverter
• shuts off non essential circuitry and reduces its no load self
• consumption till it sees a minimum programmed load (40 280 Watts)
• Optional wired remote controls for switching and monitoring
• the operation. Includes Ignition Lockout and Reverse Over-ride
• Function (ROF)
• Input and output are fully isolated
• Advanced micro-controller
• 2 load controlled cooling fans save power consumption
• 3 tri-color LEDs display operational status and fault indications
• Protections - overload; short circuit; leakage; low and high DC
• input voltages; high temperature; reverse polarity
• Safety - Meets UL-458 (Pending listing)
• EMC - Complies with FCC Part 15(B), Class A

• Service vehicles
• Mobile Offices
• Boats
• Recreation Vehicles, Camping
• Telecommunication
• Field work / Construction sites
• Solar power systems
• Emergency backup power
• Home electronics - TV, VCR, video games
• Computers, printers

• Electrical Specifications - Output
• AC Voltage - 12 VDC - 120 VAC
• Continuous Output Power - 2000 W
• Peak output power - 4000 W
• Waveform - True sine wave (THD <3%)
• Frequency - 50 / 60 Hz, switch selectable
• AC regulation - +/- 3%
• Outlets 2
• Standard
• Dimension - 16.6 x 8.2 x 6.5 in.
• Item Weight - 20 lbs.
