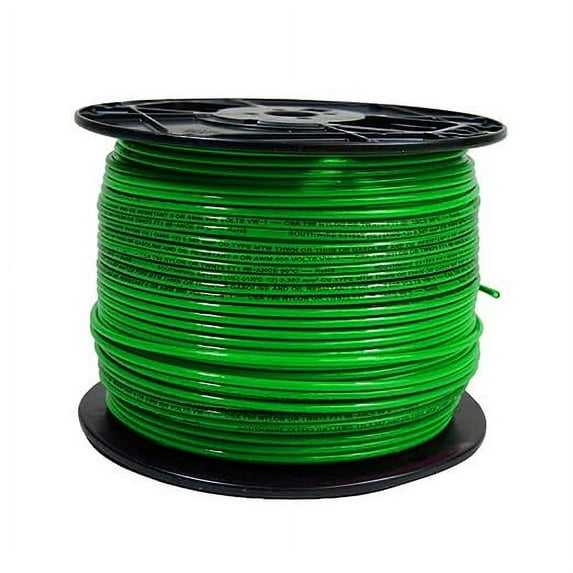

Paladin Insulated Copper THHN/THWN-2 Building Wire - 600 Volts Residential, Commercial, Industrial UL Listed - #12 Solid 500' FT Spool (Green)

12 Gauge THHN Solid Copper Building Wire. Sold by the spool. Applications: Type THHN/THWN-2 building wire is intended for general purpose applications as defined by the National Electrical Code (NEC). Type THHN-THWN-2 is permitted for new construction or rewiring for 600-volt applications. Applications requiring Type THHN or THWN-2, the conductor is appropriate for use in wet or dry locations at temperatures not to exceed 90°C or not to exceed 75°C in oil or coolants. Applications requiring Type MTW conductor is appropriate for use in dry locations at 90°C, or not to exceed 60°C in wet locations or where exposed to oils or coolants. Applications requiring Type AWM conductor is appropriate for use at temperatures to not exceed 105°C in dry locations. Also Known As: Copper wire, THWN, building wire, hook up wire, conduit wire, bathtub wire, lighting wire, nylon copper wire, construction cable, etc… Features: Nylon outer jacket for easy pulling. VW-1 rated 14 AWG – 8 AWG. All sizes are rated gasoline and oil-resistant II. Jacket: A tough, polyamide, Nylon outer covering per UL-1063 and UL-83. Standards: Underwriters Laboratories Standards UL-83, UL-1063, UL-758 AWM Spec 1316, 1317, 1318, 1319, 1320, 1321 ASTM Stranding Class B3, B8, B787 Federal Specification A-A-59544 Canadian Standards Association C22.2 No. 75 NEMA WC70/ICEA S-95-658 Institute of Electrical and Electronics Engineers Construction: Conductors: Solid, uncoated copper conductors per ASTM-B3 Stranded, uncoated copper conductors per ASTM-B3, ASTM-B787 and ASTM-B8 Insulation: Color-coded Polyvinyl Chloride (PVC), heat and moisture-resistant, flame-retardant compound per UL-1063 and UL-8 Specifications*: Size: 12 AWG Stranding: Solid Cross Section Area (mm2): 3.31 PVC Insulation Thickness (Conductor): 0.380 mm / 0.015 inches Nylon Jacket Thickness: 0.100 mm / 0.004 inches Outside Diameter: 3.05 mm / 0.120 inches Allowable Ampacity: 20 Amps at 60ºC / 20 Amps at 75ºC / 20 Amps at 90ºC
