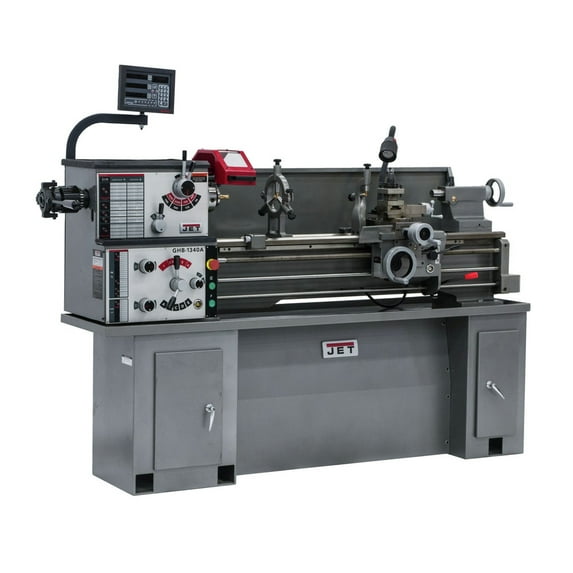

JPW Industries WC321123 GHB-1340A Lathe with ACU-RITE 200SDRO & Taper Attachment Installed

Enclosed gearbox design provides smooth, quiet operation. Fast, easy speed changes. Hardened and ground gears are featured in the headstock and gearbox. D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings. Headstock is constantly oiled during operation. Gearbox gives wide inch threading and feed capabilities with no gear changes. V-way bed design is induction hardened and ground. Gap bed design section provided for larger diameter work. Independent leadscrew and feed rod. Spinde actuation control is apron mounted. Compound and cross slide have backlash elimination. Adjustable gibs are incorporated in the carriage and slideways. Tailstock may be offset for turning tapers and includes an inch-metric graduated quill.

Includes

• GHB-1340A Lathe with ACU-RITE 200S DRO and Taper Attachment Installed - 321123
• 6 in. 3-Jaw Direct Mount Chuck with Top Reversing Jaws
• 8 in. 4-Jaw Chuck
• 12 in. Face Plate
• 4-Way Tool Post
• Steady and Follow Rest
• Metric Change Gear
• Splash Guard
• Centers and Headstock Center Sleeve
• Threading Dial
• Tool Box and Tools

Specifications

• AC Voltage: 230/460V
• Bed Width: 10-1/2 in.
• Carriage Travel: 37-1/2 in.
• Cross Slide Travel: 6-3/8 in.
• Distance Between Centers: 40 in.
• Drive Type: Geared Head
• Follow Rest Capacity: 2-3/4 in.
• Horsepower: 3
• Length of Gap: 9-3/8 in.
• Max. Compound Slide Travel: 3-1/2 in.
• Max. Tailstock Spindle Travel: 4-3/4 in.
• Motor Phase: 3
• No. of Cross Feed Rates: 40
• No. of Inch Threads: 40
• No. of Longitudinal Feed Rates: 40
• No. of Metric Threads: 22
• PreWired Voltage: 230V
• Range of Cross Feeds (IPR): 0.0003 in. - 0.0103 in.
• Range of Inch Threads (TPI): 4 - 112
• Range of Longitudinal Feeds (IPR): 0.0012 in. - 0.0294 in.
• Range of Metric Threads: 0.45mm - 7.5mm
• Spindle Bore: 1-1/2 in.
• Spindle Mount: D1-4
• Spindle Mount Taper: MT-5
• Spindle Speed Range (RPM): 40 - 1,800
• Spindle Speed Settings: 12
• Steady Rest Capacity: 3-3/4 in.
• Swing Over Bed: 14 in.
• Swing Over Cross Slide: 8-1/2 in.
• Swing Through Gap: 20 in.
• Tailstock Spindle Taper: MT-3
• Tool Size: 5/8 in. x 5/8 in.
