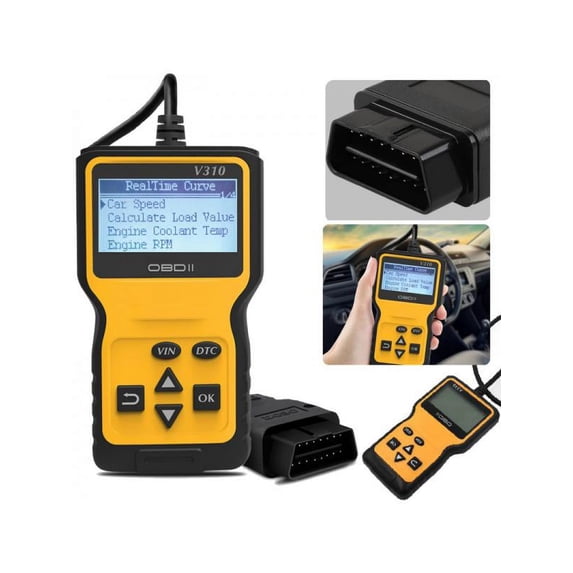

OBD2 Scanner OBD Code Reader & Scan Tools Car Engine Diagnostic Scanner Tool For All OBDII Protocol Cars 【2020 Newest Version OBD2 Car Scanner】 This OBD Car Diagnostic Scanner is faster than any Bluetooth or WiFi OBD adapter on the market, it only take 3 seconds to read. This OBD II has Large LCD display (128 x 64 pixels) with contrast adjustment for direct display of test results.
【Classic and portable design】 Large LCD display with cable, OBD2 scan tool made of very thick flexible insulation. The portable size allows you to take your travels with you.
【Full OBDII Diagnostic Scanner Function】 Automotive code readers easily determine the cause of the engine light, read code, erase code, view freeze frame, I/M ready, vehicle information, data flow, real-time curve, get vehicle speed information, calculate load value,engine coolant temperature, get engine Speed, read and clear error codes and support 6 languages: German, Dutch, English, Spanish, French, Italian.
【Easy to Operate】 Auto scan tool Get power directly from the OBDII data link connector in the vehicle without any battery or charger. Simply plug in the OBD interface to start diagnosis. We can clearly read the error codes from LCD display. Even a beginner can use this unit to read the error code, find out what the problem is and perhaps fix it.
【Powerful Compatibility for Vehicles】 OBD2 Car Scanner supports 9 protocols compatible with more vehicles, including vehicles equipped with next-generation protocols - Control Area Network (CAN).Applicable to 1996 US, 2000 EU and Asian cars, as well as newer OBD II and CAN domestic or imported vehicles. So you don't have to worry about his compatibility.
Say goodbye to expensive automotive repair shop, car engine code reader simple and super easy to use. This little device saves you the trips to your mechanic, lets you decide if it's something you can fix or need more advanced help. Save money and time.
Specification: Product mode: OBDII code reader
Product type: V310
Product dimensions: 155x85x25mm/6.1x3.3x1in
Product Weight: 200g/0.44lb
Storage temp: -30℃〜60℃
Software version: V310-FLASH-V01.01 V310-MCU-V06.1
Handware version:V.1
Operating voltage: DC 9〜16V provided via vehicle
Working current: 80mA
OBD connector: 16 PIN OBDII
Product Functions: Read error and Clear diagnostic code--General and factory specified and display their meaning.
Easily determines the cause of the check engine light.
View freeze frame Information.
Displays I/M readiness Status.
Retrieves vehicle information.
Data stream.
Real time curve.
Retrieves car speed information.
DTC one click query.
Supports OBD-II protocols: 1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
◆Where can I plug the OBD?
The OBD port is often under the dash, or under a panel below the handbrake in the center console.
◆How to use it?
Simply plug into the OBD II port on your car and turn ignition on and you ready to go.
◆Warm tips:
*Works on 12V provided by the vehicle battery ONLY.
*Must be 16 PIN OBD II protocol.
Package list : 1x Car Engine Diagnostic OBDII Reader
1x User Manual
