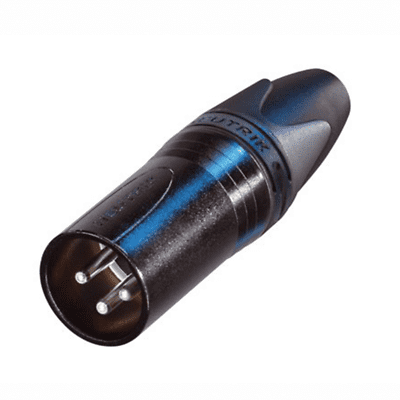

Neutrik NC3MXX-BAG Male XLR Connector Black

The NC3MXX-BAG from Neutrik is a 3 pole male XLR cable connector with black metal housing and silver contacts. This male connector with improved locking recess without "window" more stringent housing increases durability, improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster. Boot with polyurethane gland gives high protection to cable bending stresses, colour rings and boots available for coding or identification. Internal thread on shell is well protected against any damage and rugged zinc die-cast shell with long lasting and valuable ergonomic design.

Brass (CuZn39Pb3) contacts and polyamide insert

Polyurethan boot with 2µm Ag contact plating

Zinc die-cast (ZnAl4Cu1) shell with black chromium shell plating

Wire size of 14AWG

UL94 HB flammability and IP40 protection class

Polyacetal (POM) strain relief

Cable outer diameter of 3.5mm to 8mm

Lifetime >1000 mating cycles

Compliance to IEC 61076-2-103 & solderability IEC 68-2-20 standard

Temperature range from -30°C to 80°C

No. of Contacts: 3Contacts

Gender: Plug

Connector Mounting: Cable Mount

Contact Plating: Silver Plated Contacts
