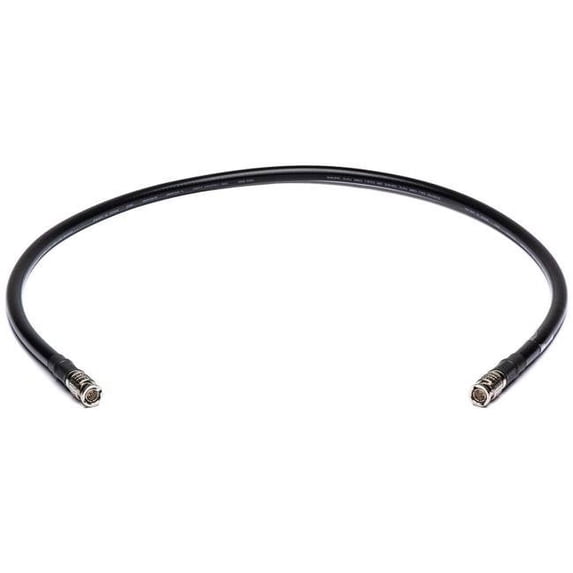

Laird Digital Cinema L8CUHD-B-B-025 12G-SDI 4K UHD Coax BNC Male to Male Cable - 25 ft.

For superior long distance 12G-SDI performance, the Laird L8CUHD-B-B series BNC cable stands alone. It supports the market's longest 12G-SDI 4K UHD runs at an eye popping 485 feet! Why trust your video signal with any other cable? The Laird L8CUHD BNC cable meets the demands of big bandwidth requirements in eSports, live events and similar arena venues.

The L-8CUHD BNC cable is specially designed for single link SMPTE 2082-1 supported runs. The copper foil and high-density tinned copper braided shield ensure your video signals maximum isolation from hum and noise. The cable also features a flame resistant UL 1666 Riser rated jacket making it perfect for installs.

• Designed for UHD and 4K Video Transport
• Fixed and Cable Reel Deployment in Studios, Trucks, Permanent Installations
• BNC Connectors Feature Elongated Body for Better Grip
• SMPTE ST-2082-1 Compliant for 12GSDI transmission
• Flame Resistance UL 1666 Riser
• Max. UHD Over Single Link Transmission Distance 486 ft / 148 m

• Size: 25 ft.
• Return loss: 20 dB at 6 GHz & 26 dB at 3 GHz
• Insulation Resistance: 5000M Ohm
• Corrosion Resistance: 50m Ohm
• Inner Conductor: Annealed Copper
• Outer Conductor 1: Copper Laminated Tape
• Outer Conductor 2: Tinned Annealed Copper Braid Greater than 90%
• Insulation: Foamed Polyethylene
• Weight: 2.51 lbs
