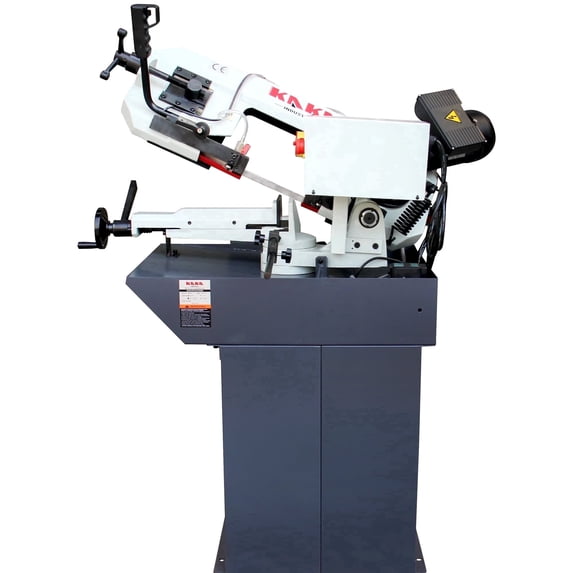

Mitering Metal Band Saw with 7.8 inch x 4.7 inch Cutting, 45° Miter Angle, 1.1HP Motor for Steel and Aluminum, with Coolant System BS-75G

Description

• Hydraulic Down Feed Control: Saw bow downfeed is controlled by an electric valve and hydraulic cylinder for smooth cutting operation.
• Integrated Coolant System: Built-in coolant pump helps reduce blade heat and supports longer blade service life.
• Adjustable Vise with Angle Scale: Vise includes a scale for quick angle setup, supporting angled cutting tasks.
• Double-Speed Operation: Features two cutting speeds to handle different material types and sizes.
• 0°–45° Rotating Saw Bow: Saw bow rotates from 0 to 45 degrees for straight and angled cuts.
• Worm Gear Transmission Structure: Worm gearbox design provides stable power transmission during cutting.
• Adjustable Jaw Positioning: Jaw calibration allows easy adjustment and positioning at various cutting angles.
• Automatic Cut-Off Function: Equipped with a sizing device that stops the machine automatically after cutting is completed.
• Safety Power Cut Protection: Machine automatically powers off when the rear protective cover is opened.
• Fixed-Length Block Feeder Included: Block feeder supports repeat cutting with consistent sawing length.

Specification:

• Item :188118
• Model: BS-75G
• Capacity Circular @90° 6”
• Rectangular @90° 7.8”X4.7”
• Circular @45° 4.7”
• Rectangular @45° 5”X3.5”
• Blade speed 48 MPM
• Blade size 0.79"X0.035"X81.1"
• Motor Power 0.8kW 1.1HP
• Drive Gear
• Packing size 46x28x32 in (body) / 25x16x27 in (stand)
• N.W/G.W. 468/541 lbs
