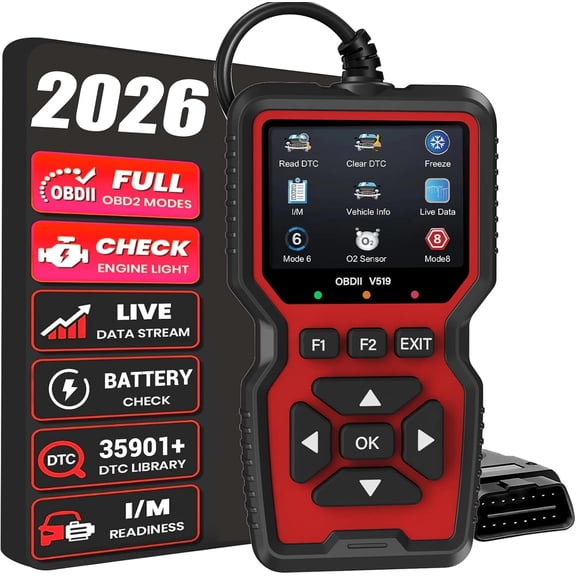

JDIAG OBD2 Scanner ,Code Reader Automotive Engine Light Check Scan Tool Checks O2 Sensor and EVAP Systems with Full OBD2 Functions

Full OBD Service Modes:

• Read and Clear the fault codes, turn-off Malfunction Indicator Light (MIL)
• Displays Freeze Frame data & Displays Oxygen Sensor test results
• Display I/M readiness status.(Non-continuously Monitored Systems test )
• Show Live Data in the graph such as engine RPM, temperatures, ignition advance, speed ,etc.
• Request On-Board Monitoring test results for specific monitored systems
• Built-in DTC lookup library with cause analysis & Request Vehicle Information
• Checking system status & DTC Lookup & Component test& Modules present
• Screen Shot,Battery Detection,Battery Voltage,Smog Check,Great Optimized Live Data,Advanced test results (like misfire counts) for On-Board Diagnostic System Monitors.

Live Data Viewing
Live data are displayed in a time-based chart to help customers to better analyze the abnormal parameter. This function will let you see engine performance information, if there are any trouble codes or issues with your engine or ECU.

Read Vehicle Information
This code reader car diagnostic tool can retrieve the vehicle information, such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc., which offers help and convenience to users for repair or parts replacement.

How to use YA101?
Locating Data Link Connector
1.Choose a location under driver side dash under steering wheel) and use that description in both places.
2.If unsure about location of dlc, check vehicle manual or reputable service center about location

Connect the tool
1.If the connector is not there a label should be there indicating the whereabouts of the connector.
2.If necessary, remove the cover from the DTC
3.Turn the ignition switch to the on position.Do not start the engine
4.Plug the OBD connector into the Data Link Connector.
5.The tool will attempt to identify the vehicle. If successful, the vehicle identified. if the vehicle cannot be identified, menus will be shown for you to select the vehicle manually.

YA101 Code Reader Support Car List:
American Car:
Need Standard OBD2 Protocols from 2000 to now

European Car:
Need Standard OBD2 Protocols from 2003 to now

Japanese/Korean Car:
Need Standard OBD2 Protocols from 2006 to now

Chinese Car:
Need Standard OBD2 Protocols from 2009 to now

Support Car Models for OBDII diagnostic function:
(Note: YA101 only Support 12V cars, Does not support 24V Truck )
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)

Package list:
1pc * YA101 Code Reader
1pc * English User Manual
