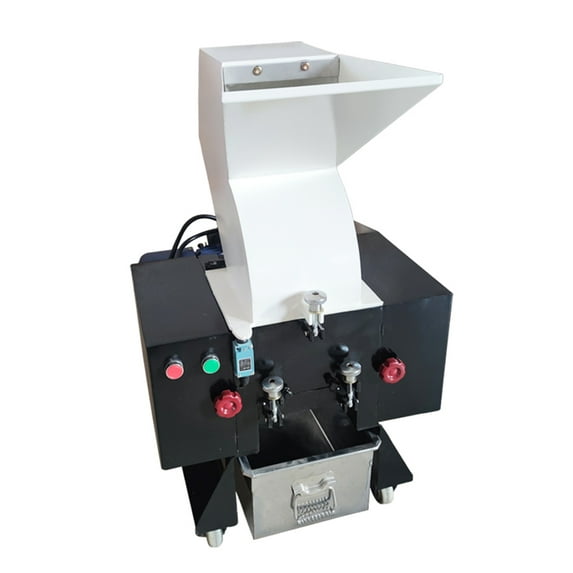

INTBUYING Electric Plastic Shredder 180 Type Single-Phase 220V 2.2KW White

Description
This electric plastic crusher grinder granulator is used to crush large solid materials to the required size. It can shred wood, plastic, nylon products, cloth, paper, circuit boards, PP/PC, PA/PE, PVC, PET/ PS, FRP, aluminum bottle caps, spices, corn, grain and etc.
The particulates crushed by it can be directly used as raw materials for production. Heavy duty plastic grinding machine is widely used in food, industry, greening, recycling and other industries.

Parameters
Model: PC180 white
Color: white
Voltage:220V
Power:2.2KW
Rated current:13.85A
Transmission mode: belt ( length 1016mm)
Number of Belts : 2
Number of Movable Blades: 9
Number of Fixed Blades: 2
Blades material: alloy steel(9Cris)
Spindle speeds:520r/min
Handled Material Size: 95*95mm
Spindle material:45#steel
Screen aperture :6mm
Screen material:45#steel
Feeding hopper opening method: manual
Crushing capacity: 50-100KG/H
Diameter of crushing chamber: 150*200mm
Feed port dimension : 110*180mm
Dimensions: 630*520*950mm
Whole machine weight: 120kg

Notice:
If the hardness and structure of the material are not considered, the maximum size that this type of machine can handle is about 95*95mm, and the thickness is preferably within 10mm. This is only a reference. Due to the variety of materials, we can provide you with experience based on experience. The materials are analyzed to determine whether they are suitable. Welcome to inquire before purchasing.

Features
1.Thickened double-layer board, powerful Mute
2.Alloy steel blade, extremely sharp
3.Pure copper motor, full copper wire wrapping, stronger power
4. Enlarge inlet. widened duckbill shape and enlarged feed inlet, faster blanking and faster punching
5.Knife chamber. uses thick materials, effectively preventing vibration and noise, and has a high environmental protection effect
6.Large diameter flywheel. Large flywheel and belt pulley, extremely stable performance, suitable for crushing various plastics
7.Lock nut. Tighten by hand before tightening with a wrench, easy to operate, humanized design, good hand feeling
8.Extra long material receiving drawer. Enlarge and extend the drawer, only for more storage, and more convenient for customers to take materials
9.Brand motor. As the heart of the device, the motor has stable performance, minimal failure rate and long life
10.Customizable screen mesh . The size of the output depends on the size of the screen mesh, the choice is more flexible
11.Tool steel refined step knife, tool clearance can be adjusted, after blunt can be repeatedly removed from grinding

Item Included: SM-290049
