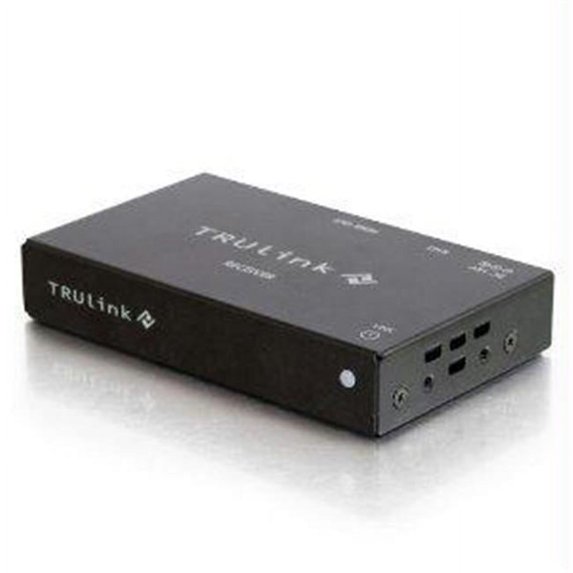

Hdmi Over Cat5 Box Rx -

The HDMI over Cat5 Receiver when paired with a transmitter (not included) allows for the extension of an HDMI signal over solid conductor Cat5e/6 twisted pair cable* up to 300 ft. without signal degradation at a 1080p video resolution. This solution is compatible with any operating system and is truly plug and play with no drivers or software required. In addition this solution utilizes TruChoice Power which provides the flexibility to power the system with a single power supply at either the transmitter or receiver end. HDBaseT technology allows the Extended Display Identification Data (EDID) signals i.e. communication of the display's capabilities to pass through the extension solution ensuring that the content from the source is sent at the optimal resolution for the display. Built-in power surge protection and high ground loop immunity ensure high performance signal extension.

• Video signal support - HDMI
• Maximum video resolution - 1080p
• Maximum extension - 300 ft.
• Input voltage - 100~240V
• Output voltage/Amperage - 18V 1.0A
• Cable length - 1.5 m.
• Plug diameter - 4.75 mm.
• Center pin polarity - Positive
