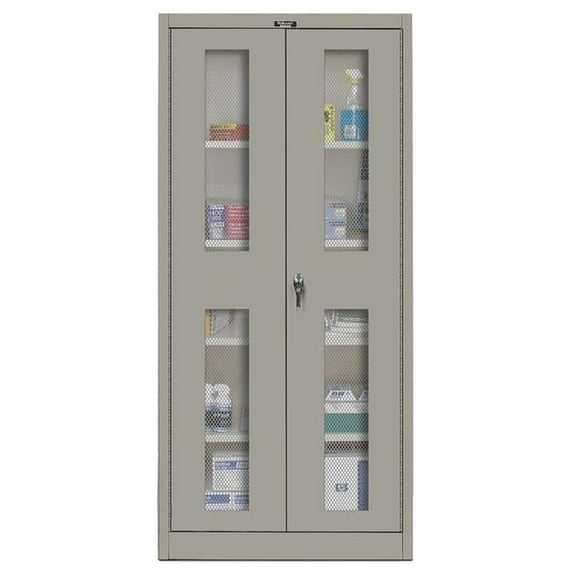

Hallowell 400 Series Stationary Ventilated Combination Cabinet 36W inch 725 Hallo

GeneralFabricate cabinets square, rigid and without warp, with metal faces flat and free from dents or distortion- Make all exposed metal edges safe to touch- Weld frame members together to form rigid, one-piece structure- Weld, bolt, or rivet other joints and connections as standard with manufacturer- Grind exposed welds flush- Do not expose bolts or rivet heads on fronts of cabinet doors or frames-FeaturesType - Double Ventilated Doorno bolt heads show on front or on side panelspositive three point locking (top, center and bottom) and theft resistant hinges for securityshelves easily adjust up or down in 2 in- incrementstripleflanged shelf front for added strengthdoors swing out quietly a full 180 in- and are 'HAT' section reinforcedcorner foot gussets provide added rigidity and stability22 Gauge body22 Gauge Shelves adjust on 2 in- center22 Gauge door with 16 Gauge frame16 Gauge continuous piano hinge200 lb shelf capacityDoors include key lock and 3-point turn handlebAll cabinet parts to be cleaned and coated after fabrication with a seven stage zinc/iron phosphate solution to inhibit corrosion, followed by a coat of high grade custom blend powder electrostatically sprayed and baked at 350 degrees Fahrenheit for a minimum of 20 minutes to provide a tough durable finish-FrameFabricate of 16 gauge (minimum) channels, with integral continuous door stop/strike formed on both latch and hinge side vertical members- Cross frame members of 16 gauge channel shapes shall be securely welded to the vertical framing members to ensure rigidity- Bottom frame member to be not less than 4 in- high-DoorsFabricate back and sides of 22 gauge (minimum) sheet steel- Sides to include a single bend at the vertical edges which overlap the offset of the vertical edge on the rear panel- Adjustable shelf retainer strips are to be spot welded to the inner side panels allowing shelf adjustment on 2 in- centers- Form top and bottom of 22 gauge (minimum) sheet steel bolted at all four sides-Casters Kit (Mobile Units ONLY)Caster kit shall consist of four lockable swivel casters and two caster mounting plates- Casters shall be 4 in- diameter casters with an individual capacity of not less than 350 lbs- Mounting plates shall be 14 gauge steel, 4-3/4 in- wide and include a formed stiffening flange-EquipmentForm shelf of 22 gauge (minimum) sheet steel with single bends atsides and double return bends at both the front and back-Center PartitionShall be fabricated from minimum 22 gauge sheet steel- The center partitionshelves-Coat Rodcombination cabinet-HooksProvide not less than two coat hooks located below the coat rod on the wardrobe side ofthe combination cabinet- SKU: 000GRP-HLWL3994
