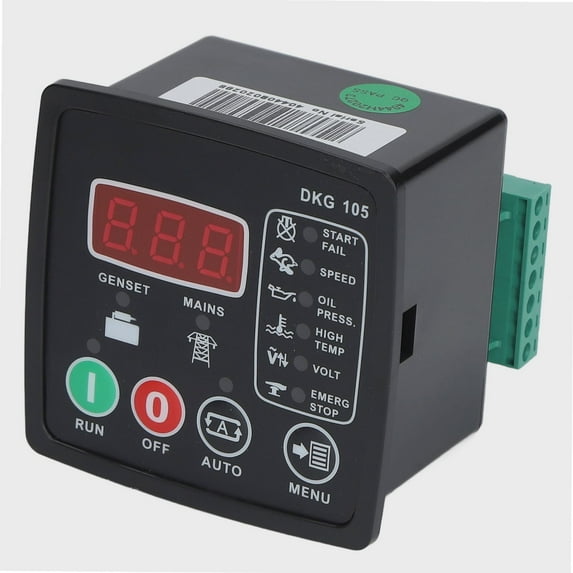

Genset Controller Module, DC Engine Speed Control Unit Controller Auto Start Stop Diesel Engine Controller for Diesel Gasoline Engine Generator

Specification:
Item Type: Generator Engine Controller
Material: Flame Retardant High Temperature Resistance ABS(UL94 V0,110 C)
Weight: Approx. 241g/8.5oz
Size: Approx. 8x8x7cm / 3.1x3.1x2.8in
Power Supply: 277 VAC (Ph N)
Main Frequency: 50 60 Hz
Type of Power System: TN or TT
AC Generator Voltage: 277 VAC(Ph-N)
AC Frequency: 0-100 Hz
Measurement Category: CAT 2
Dc Power Supply Range: 9-33V DC 4.0-33V DC
At the Same Time, the Current Consumption of Crank: 60 mADC Typical (Automatic Mode, Normal Power Supply) Up to 200mADC (Relay Output On)
Total DC Current Output Rating: 10 ADC
Total AC Current Output Level: 10 AAC
Current Level of Each Output Terminal: 10 ARMS
Operating Temperature Range:-20℃ (-4°F) to 70℃ (158°F)
Storage Temperature Range:-30℃ (-22℃) to 80℃ (176°F)
Maximum Humidity: 95% Non Condensation.
Installation Opening Size: Approx. 68x68mm / 2.68x2.68in (Minimum)
Accuracy:
Phase Voltage: 2%+1V
Generator Frequency: +/-0.5Hz
Purpose: It is commonly used in ships, electric power, communication, and places where generators are needed.

Package List: 1 x Generator Engine Controller 2 x Accessories 1 x Manual
Note: Please allow some error for manual measurement.
