Free Drive Usb Control 2-Way 5V 2 Channel Relay Module Computer Control PC intelligent Control

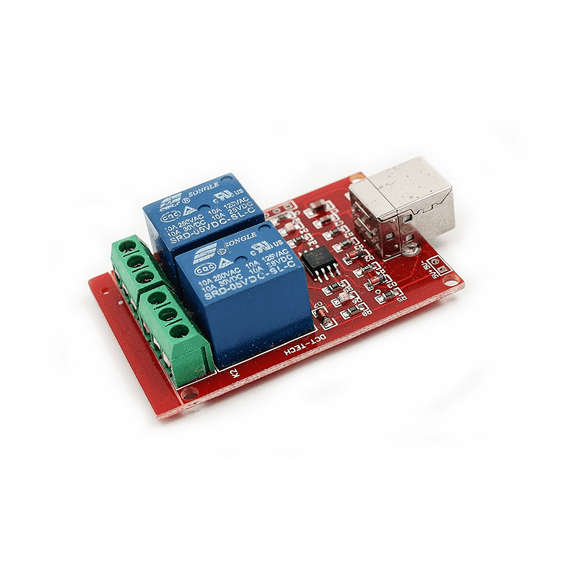

Product Description The module uses HID technology, trade quality, without any drivers, downloads, which comes with the application, plug and play. Support WIN7, XP 32-bit, 64-bit systems, easy to use and simple. Module Description: 1. Onboard square USB interface to connect stable 2. The use of imported high-performance USB controller chip 3. Use genuine loose music relay 4. The military grade PCB board production 5. 4-way?? 8-way power interface aside, connected to power, even if the computer off or unplug the USB from the computer, you can also relay remains set. 1-way and 2-way no power connector. 6. PCB size: 56.5 mm * 40.6 mm 7. fixing hole size: 3mm, fixing holes central moments: 52.2 mm * 36.6 mm product parameters: 1. The relay is 5V loose music relay, the relay can control the maximum 250V, 10A AC load and 30V, 10A DC load 2. The control terminal connection mode: NC / COM / NO. application: Green indicates that the relay is closed and red disconnect
