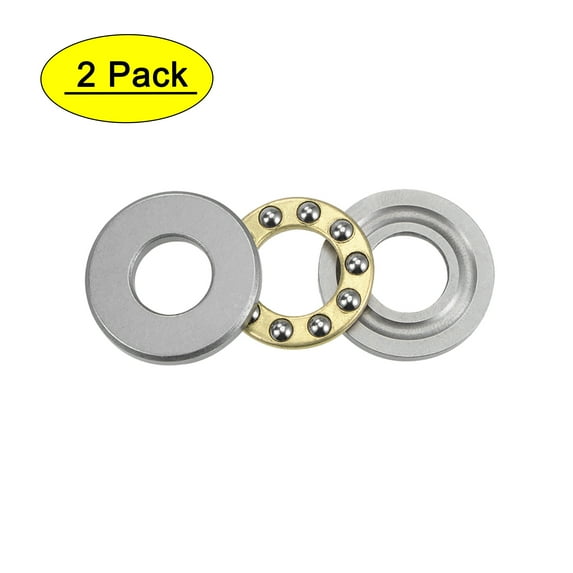

F9-20M Miniature Thrust Ball Bearings 9mmx20mmx7mm Chrome Steel with Washers 2 Pcs

Description:

• The separable components of thrust ball bearings are interchangeable. This facilitates mounting and dismounting, and maintenance inspections.
• Thrust Ball Bearings are consisted of a shaft washer, a housing washer and a ball and cage assembly.
• They are designed to accommodate axial loads and locate a shaft axially, in one direction only, and must not be subjected to any radial load.
• Chromium Steel (GCr15) Shaft and Housing Washer provide high and uniform hardness, good wear resistance.

Specification:

• Model: F9-20M
• Shaft/Housing Washer Material: Chromium Steel (GCr15)
• Bearing Ball Meterial: Chromium Steel (GCr15)
• Cage Material: Stamping Steel
• Inner Diameter (d): 9mm
• Outside Diameter (OD): 20mm
• Thickness (B): 7mm
• Dynamic Load Rating (Cr): 3356N
• Static Load Rating (Cor): 2999N
• Limiting Speed (Grease): 2500rpm
• Limiting Speed (Oil): 4500rpm
• Accuracy Class: P0 (ABEC-1)
• Noise Level: Z1
• Number of Pack: 2Pcs
