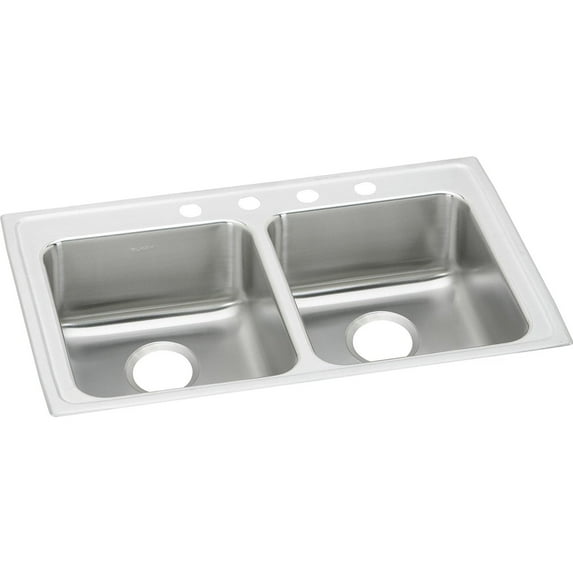

An Elkay Lustertone sink looks as great on day 3,000 as it does on day one. Our signature finish is handcrafted with a rich, uniform grain that adds to the beauty of the sink. Light scratches, which occur with everyday use, naturally blend into the finish with time.
Product Features
- ADA COMPLIANT: Product is ADA compliant when properly installed.
- LUSTERTONE FINISH: Durable, handcrafted finish looks as great on day 3,000 as on day one. Light scratches naturally blend into sink finish with time.
- TOP MOUNT INSTALLATION: Sink is designed for drop-in installation to make the sink a focal point of your room.
- DOUBLE BOWLS OF EQUAL SIZE: Conveniently use bowls independently for washing, soaking, rinsing, drying and other household tasks.
- 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
- QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
- U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install.
- OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below.
- MADE IN THE USA: This Elkay product is proudly made in the USA.
- DRAIN OPENING: Sink drain opening measures 3-1/2".
Technical Specifications
- Length: 33"; Width: 19.5"; Height: 6"
- Sink Depth: 6"
- Style: Traditional
- Material: Stainless Steel
- Finish: Lustertone
- Intended Use: Residential/Multi-Family
- ADA: Yes
- Installation Type: Top Mount
- Mounting Hardware Included: Part # 64090014 included for countertops up to 3/4" (19mm) thick
- Template Included: No
- Recommended Installation Hardware: LK364, LK463
- Number of Bowls: 2
- Bowl 1 Length: 14"; Bowl 1 Width: 14"; Bowl 1 Depth: 5.875"
- Drain Size (Bowl 1): 3.5"
- Bowl 2 Length: 14"; Bowl 2 Width: 14"; Bowl 2 Depth: 5.875"
- Drain Size (Bowl 2): 3.5"
- Soundproofing: Bottom only pads
- Faucet Holes Configuration: 3
- Minimum Cabinet Size: 36"
- Countertop Cutout: 32-3/8" x 18-7/8" (822mm x 479mm) with 1-1/2" (38mm) corner radius
- Optional Soap Dispenser: LKGT1054
- Optional Cutting Board: CB1613
- Optional Rinsing Basket: LKWRB1414SS
- Optional Drain: LK99, LKAD35
- Optional Faucet: LKGT1041, LKGT2041
- Gauge: 18
- Base Material: 304
- Code Compliance: ADA & ICC A117.1, ASME A112.19.3/CSA B45.4, BUY AMERICAN ACT, IAPMO (cUPC_sinks)
Downloads & Documentation
Product Video
Download Dimensional Drawing for this product
