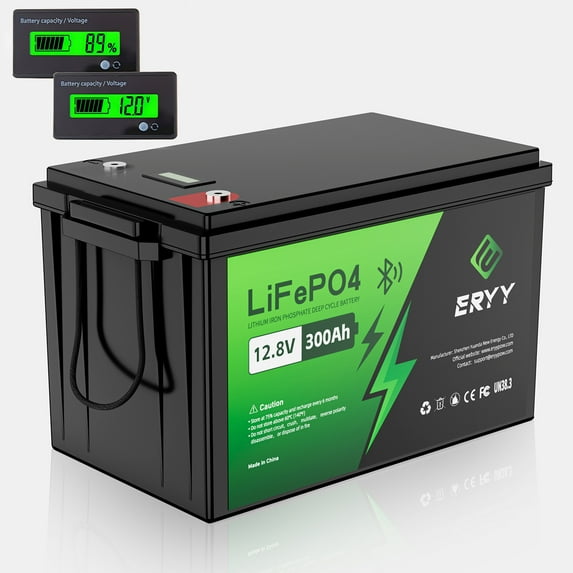

Recommended Uses For Product: RV, Marine, Boat, Trailer, Trolling Motor, home backup power, UPS, Off-Grid Solar System, Camping lighting
BATTERY
Cell Type:Lithium-Phosphate
Warranty:1 Years
Cycle Life:4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
Nominal Voltage:12.8V
Rated Capacity:300Ah
Energy:3840Wh
Max. Expansion (Parallel & Series):4P4S
Internal Resistance:≤40mΩ
Certifications:UL, FCC, CE, RoHS, UN38.3
BMS
BMS:200A
Max. Continuous Output Power:2560W
Max. Continuous Charge Current:200A
Max. Continuous Discharge Current:200A
Max. Discharge Current 5 Seconds:300A
TEMPERATURE
Charge Temperature:0℃ to 45℃ / 32℉ to 113℉
Discharge Temperature:-20℃ to 55℃ / -4℉ to 131℉
Storage Temperature:-10℃ to 50℃ / 14℉ to 122℉
Low-Temperature Charging Protection Auto Recovery:5℃ / 41℉
OTHERS
Terminals:M8 bolts
Weight Approx.:53 lbs
Size:L15.1*W7.6*H9.8 inch
Housing Material:ABS (Flame Retardant Plastic)
Protection Class:IP65
CHARGE
Charge Method:CC/CV
Charge Voltage:14.4V ± 0.2V
Recommend Charge Current:20A/40A (0.2C)
TIPS
Please use a lithium charger to charge the batteries, other types of chargers may cause damage to the batteries due to different charging stages and modes. If you have related problems, please feel free to contact us.
Storage:
1. Keep your battery in a cool and dry place (preferably between 32°Fand 108°F). charginging temperature: Charge at 32°F-108°F;Discharge at -4°F-131°F.
2. Never store your battery fully discharged, it's best to put a 50% charge on your battery and avoid leaving for a long period of time without charging. Recharge the at least every 3 months. Do not immerse in water.
3. Cleaning: Never use a steam pressure washer when cleaning the battery .Never completely immerse the battery in water. Wiping it off with a damp cloth.
Note for the batteries, when Connecting the batteries In Series or/and In Parallel
1.From same brand and purchased recently time,And same battery capacity(300Ah)
2.Fully charge the battery separately(voltage at rest>13.4V)
3.Connect the batteries one by one in parallel and leave them together for 12-24hrs
