Distribution Amplifier,8 Way Amplifier Noise Indoor Use Way Amplifier With Tv And Radio Amplifier 87-2350mhz Tv Dsfen Tv Antenna Low Antenna Low Noise With Irs Tv Irs Tv And

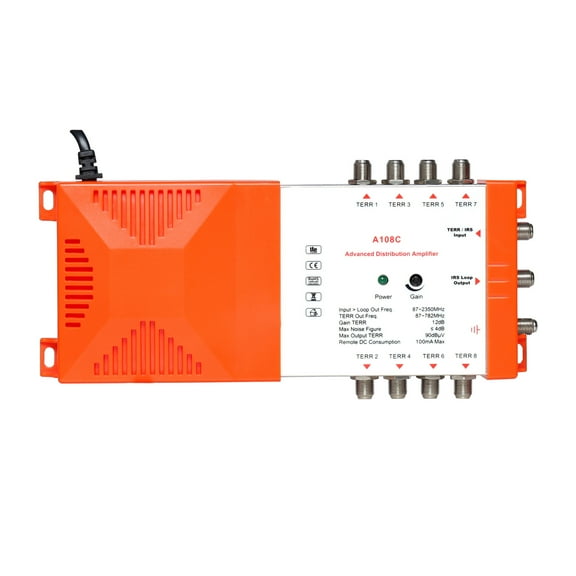

Professional 8 Way Distribution Amplifier with IRS Loop-through Terrestrial TV and Radio Distribution Amplifier 87-2350MHz TV Antenna Signal Booster Low Noise High Gain for Indoor Use features an IRS Loop-through which enables 8-way distribution amplifier to be connected directly to a Multiswitch subscriber output. Used as a Terrestrial TV and Radio Distribution Amplifier (MATV), distribution amplifier provides unrivalled low noise, high gain performance and reliability. RED compliant distribution amplifier includes a high rejection 4G Filter and features a 15dB Gain Control which ensure that 8-way distribution amplifier can be applied to most signal level scenarios. distribution amplifier is designed to meet requirements of modern Integrated TV & Satellite Integrated Reception System. Wall mounted installation; amplifier can be fixed with 4 equipped screws easily to relevant wall, surface, or cabinet. It’s intended for indoor use only. unit can be powered via AC mains supplied or, in absence of mains supply can be remotely powered via any of TERR Outputs using a suitable PSU (not included).

Note: Size and color may be slightly different due to manual measurement and different light conditions. Thanks for understanding.

Specifications:
Remote Consumption: 100mA Max.
Package Weight: 596g / 1.31lbs
Max. Noise Figure: ≤4dB
Color: White & Orange
Package Size: 25.5 * 12 * 5cm / 10.04 * 4.72 * 1.97in
TERR Out Frequency: 87~782MHz
Item Weight: 509g / 1.12lbs
Max. Output TERR: 90dBV
Material: ABS + Metal
Cord Length: about 135cm / 53in
InputLoop Out Frequency: 87~2350MHz
Plug: / (Optional)
Item Size: 240 * 95 * 37mm / 9.45 * 3.74 * 1.46in
Gain TERR: 12dB


Professional 8-way distribution amplifier with IRS Loop-through can be connected directly to a Multiswitch subscriber output whereby SAT and TERR/Radio signals are passed through distribution amplifier before terminating at outlet plate. IRS Loop-through can also be used to cascade multiple units to create large scale Master Antenna TV systems (MATV). When used a s a standard TERR and Radio distribution amplifier, it offers a professional, low noise, high gain solution.

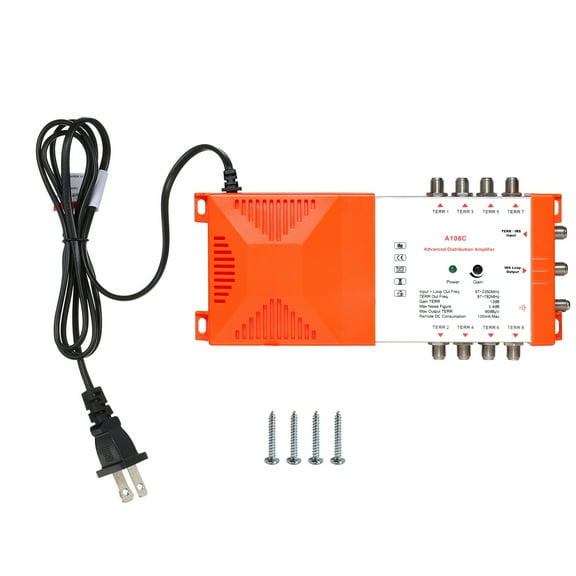

Package List:
1 * Distribution Amplifier
4 * Screw
