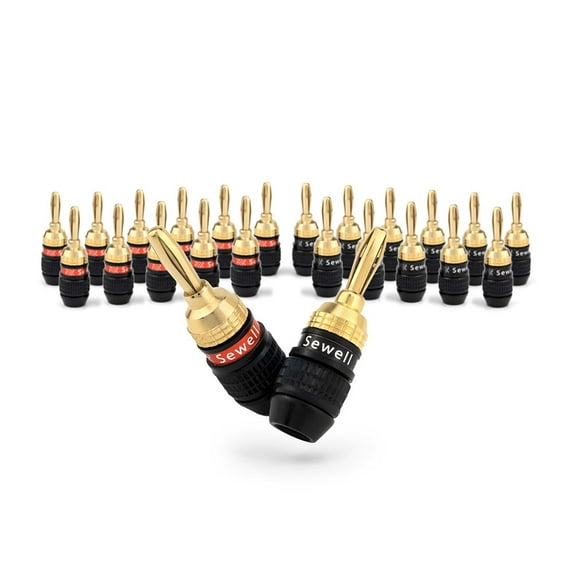

Deadbolt Banana Plugs

Get the most out of your home audio system by ensuring the best connection from your speaker cable to your receiver with Deadbolt Banana plugs. The self-crimping teeth on these plugs provides a simple, secure, and low-profile connection without requiring soldering or screws.

1. Unscrew the cap off the Deadbolt Banana Plug.
2. Feed the bare conductor of the speaker wire through the center hole of the banana plug. (strip wire about 1/2")
3. Bend the wires of the speaker wire down around the teeth.
4. Replace the cap to secure the speaker wire.
5. Your Deadbolt Banana Plug is ready for connection.

• 4mm Tip
• 24k Gold Plating on Connector and Crimping Teeth
• Steel connector for superior durability.
• Heavy Duty Brass (black) Casing
• Maximum accepted AWG: 8 AWG (10 AWG suggested)
• Maximum Jacket AWG: 2 AWG~ (1/4")
• Will need to strip about 1/2" of the jacket off the end of your speaker wire to terminate

• Total Length: 1.7in (43.3mm)
• Plug Length 0.67in (17mm)
• Plug diameter: 0.13-0.18in  (3.4-4.7mm)
• Outside Diameter (sleeve): 0.51in (13mm)
• Inside Diameter (sleve): 0.25in (6.4mm)
• Sleeve length: .73in (18.6mm)
• Outside Diameter (connector): 0.45in (11.4mm)
• Inside Diameter (connector): 0.28in (7.25mm)
• Connector depth 0.55in (14mm)
