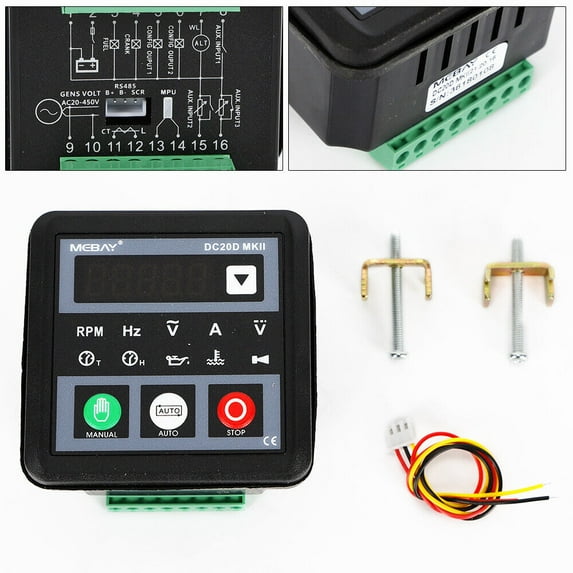

DC20D MKII Genset Controller Module Control Panel for Engine or Generator

Package Include:
2 X Dc20d Mkii Genset Controller
4 X Mounting Screws
2 X Cable

Features:
Micro-computer Control
Man/Auto Start/Stop
5 Units Led Tube Display
Led and Fault Alarm Code Indication
Two Group of Programmed Relay Output
Application for Various Kinds of Engine by Self-setting
With Rs485 Communication Port

Control:
Manual Start/Stop
Auto Start/Stop
Preheat Control
Auto Idle Control
Choke Control
E.s.t Control
Specification：
Dc Supply: Dc 8～36 V.
Power Consumption: Dc 8～36 V.
Measuring Frequency:10～70 Hz.
Ac Input: Ac 50～380 V.
Current Measurement Range:0-2000a.
Speed Sensor Frequency:30-9999hz

Relay Output:
Fuel Output: Max 5a.
Start Output: Max 5a.
Configurable Output1:Max 2.5a.
Configurable Output2:Max 2.5a.
Excitation Output: Max 1a.
Size:78mm * 78mm * 55mm.
Panel Cut-out:67mm * 67mm.
Protection Level:ip54 When Waterproof Rubber Gasket Is Added Between Controller and Its Panel.
Operation Temperature :-30℃～70℃.
Storage Condition:-40℃～85℃.
Weight:250g.
Panel: Chinese/English Optional
