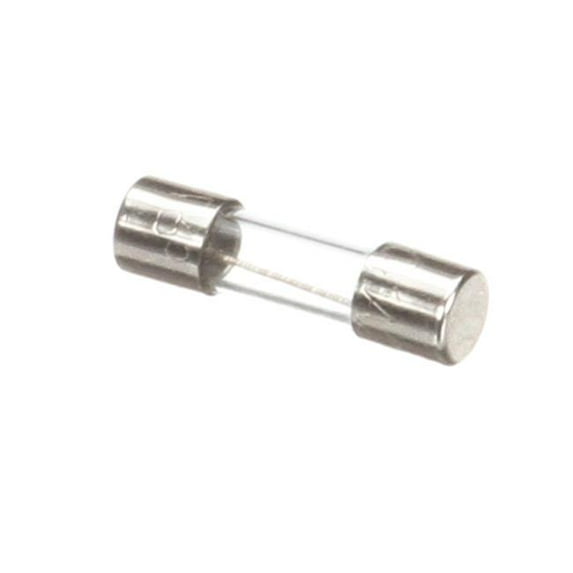

Control Transformer Fuse

Controls of all kinds are integral parts of restaurant equipment operations. A control is a switch or other device by which a machine is regulated. A control may be manual or automatically operated. An electro-mechanical control typically consists of multiple relays, timers, and/or counters wired together on an enclosure panel.

Electro-mechanical control is also referred to simply as "Relay Control", which is a more accurate term since solid state electronic relays, timers and counters are standard components. Contactors, motor and compressor starters, valves, thermostats and other output devices are used to turn on/off motors, indicator lights, heating elements and other components used in the equipment.

A fuse is an electrical safety device that operates to provide over-current protection of an electrical circuit. Its essential component is a metal wire or strip that melts when too much current flows through it, thereby stopping or interrupting the current. Once a fuse has blown, it must be replaced or rewired, depending on the type. There are thousands of different fuse designs which have specific current and voltage ratings, breaking capacity and response times, depending on the application. The time and current operating characteristics of fuses are chosen to provide adequate protection without needless interruption. The speed at which a fuse blows depends on how much current flows through it and the material of which the fuse is made. The operating time is not a fixed interval, but decreases as the current increases. Fuses have different characteristics of operating time compared to current. A standard fuse may require twice its rated current to open in one second.

A transformer is a passive electrical device that transfers electrical energy from one electrical circuit to one or more circuits. A varying current in any one coil of the transformer produces a varying magnetic flux, which, in turn, induces a varying electromotive force across any other coils wound around the same core. Electrical energy can be transferred between the (possibly many) coils, without a metallic connection between the two circuits. Faraday's law of induction discovered in 1831 described the induced voltage effect in any coil due to changing magnetic flux encircled by the coil.

• Height: 0.1?in.?
• Width: 0.15?in.?
• Length: 0.1?in.?
