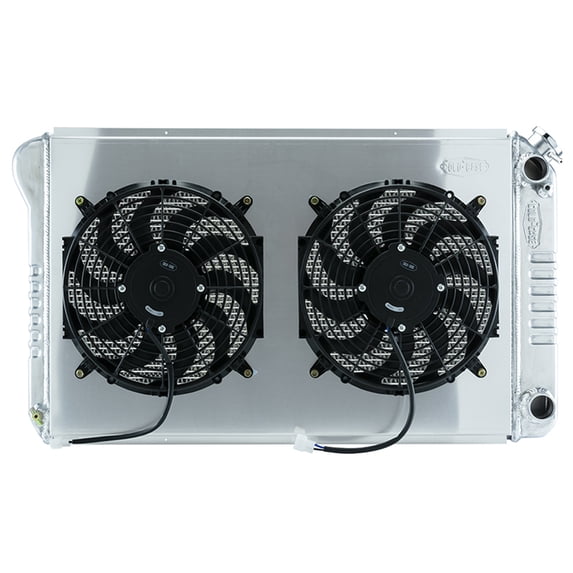

Cold Case Radiators CHC557AK Radiator Repair Part Polished
Key item features
- Vehicle Compatibility: Designed for A/T SBC GM F-Body models from 1967-1969 and compatible with 1970-1981 F-Body GM Small Block Chevy vehicles.
- Radiator Dimensions: Features overall dimensions of 33-13/64" width, 19" height, and 3" depth, with a core measuring 27-1/2" width and 18-13/32" height.
- Cooling Design: Incorporates a two-row, single-pass design with crossflow direction for efficient heat dissipation, and includes a fluid cooler.
- Inlet/Outlet Specifications: Both the inlet and outlet are located on the passenger side, measuring 1-9/16" with a hose barb style.
- Integrated Fan: Comes with a 16" diameter fan providing 2500 CFM airflow for enhanced cooling performance.
- Polished Finish: The radiator repair part features a polished finish, contributing to an enhanced aesthetic.
Generated by AI
Specs
- BrandCold Case Radiators
- Manufacturer part numberCCRCHC557AK
- MaterialAluminum
- Vehicle fitment typeSpecific
- Weight39.6000 oz
- Vehicle makeGM
Current price is USD$692.54
Price when purchased online
Out of stock
How do you want your item?
Out of stock
About this item
Product details
Passenger Side Inlet Passenger Side Outlet Radiator & Fan
Browse our exclusive collection of auto accessories that includes top quality products to enhance the style, comfort and functionality of your vehicle. We provide one stop shop for the perfect auto accessories for the vehicle.
Compatibility:- 1970-1981 F-Body GM Small Block Chevy
- Color: Polished
- Application: Yes
- Pass: Single
- Row Number: 2
- Overall Width: 33-13/64 in.
- Overall Height: 19 in.
- Overall Depth: 3 in.
- Core Width: 27-1/2 in.
- Core Height: 18-13/32 in.
- Inlet Side: Passenger Side
- Inlet Upper/Lower: Upper
- Inlet Size: 1-9/16 in.
- Inlet Style: Hose Barb
- Inlet Quantity: 1
- Outlet Side: Passenger Side
- Outlet Upper & Lower: Lower
- Outlet Size: 1-9/16 in.
- Outlet Style: Hose Barb
- Outlet Quantity: 1
- Tube Size: 1-1/4 in.
- Fluid Cooler: Yes
- Flow Direction: Crossflow
- Cap Included: No
- Fan Included: Yes
- Fan Quantity: 1
- Fan Diameter: 16 in.
- Fan CFM: 2500 cfm
Cold Case Radiators CHC557AK Radiator Repair Part Polished
- Designed for A/T SBC GM F-Body models from 1967 to 1969
- Overall dimensions: 33-13/64" width, 19" height, and 3" depth
- Features a polished finish for enhanced aesthetics
- Compatible with 1970-1981 F-Body GM Small Block Chevy
- Two-row design for improved cooling efficiency
- Inlet and outlet located on the passenger side
- Inlet size: 1-9/16" with hose barb style
- Outlet size: 1-9/16" with hose barb style
- Core dimensions: 27-1/2" width and 18-13/32" height
- Fluid cooler included for optimal performance
- Crossflow flow direction for effective heat dissipation
- Fan included with a diameter of 16" and airflow of 2500 CFM
- Single pass design for streamlined cooling system integration
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it. Â
Specifications
Brand
Cold Case Radiators
Manufacturer part number
CCRCHC557AK
Material
Aluminum
Vehicle fitment type
Specific
Warranty
Warranty information
30-Day Warranty
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
Warranty url
Warnings
WARNING: WARNING: This product contains chemicals known to the State of California to cause cancer andbirth defects or other reproductive harm.Similar items you might like
Based on what customers bought
Nuvision for 05-06 Pontiac Gto AT MT OE Style Aluminum Core Replacement Radiator DPI 2987 $80.99
Sponsored$8099current price $80.99Nuvision for 05-06 Pontiac Gto AT MT OE Style Aluminum Core Replacement Radiator DPI 2987
Shipping, arrives in 3+ daysNuvision for 08-11 Chevy Caprice Pontiac G8 6.0/6.2 2-Row Aluminum Core Radiator DPI 13044 $117.99
Sponsored$11799current price $117.99Nuvision for 08-11 Chevy Caprice Pontiac G8 6.0/6.2 2-Row Aluminum Core Radiator DPI 13044
Shipping, arrives in 3+ days5/16in Radiator Transmis sion Cooler Plug $11.44
$1144current price $11.445/16in Radiator Transmis sion Cooler Plug
15 out of 5 Stars. 1 reviews68-72 GM A Body Radiator AT $360.34 Was $426.54
$36034current price $360.34, Was $426.54$426.5468-72 GM A Body Radiator AT
24 out of 5 Stars. 2 reviewsCold Case Radiators 78-88 GM G-Body Radiator $395.97 Was $434.54
$39597current price $395.97, Was $434.54$434.54Cold Case Radiators 78-88 GM G-Body Radiator
15 out of 5 Stars. 1 reviewsCold Case Radiators 1964-1967 GTO Radiator $80.70
$8070current price $80.70Cold Case Radiators 1964-1967 GTO Radiator
Nuvision for 99-13 Chevy Silverado GMC Sierra AT OE Style Aluminum Cooling Radiator 2423 $119.99
Sponsored$11999current price $119.99Nuvision for 99-13 Chevy Silverado GMC Sierra AT OE Style Aluminum Cooling Radiator 2423
Shipping, arrives in 3+ daysRAParts AM3618628M92 Radiator $790.99
Sponsored$79099current price $790.99RAParts AM3618628M92 Radiator
Shipping, arrives in 3+ daysCold Case Radiators 68-77 A-Body Radiator w/Dual 14in Fan Kit $882.99
$88299current price $882.99Cold Case Radiators 68-77 A-Body Radiator w/Dual 14in Fan Kit
Cold Case Radiators CHC545AK Aluminum Performance Radiator 1970-1981 Chevy Camar $524.71 Was $621.71
$52471current price $524.71, Was $621.71$621.71Cold Case Radiators CHC545AK Aluminum Performance Radiator 1970-1981 Chevy Camar
Cold Case Radiators 68-72 A-Body LS Swap Rad iator &Dual 12in Fan $601.60 Was $662.49
$60160current price $601.60, Was $662.49$662.49Cold Case Radiators 68-72 A-Body LS Swap Rad iator &Dual 12in Fan
13 out of 5 Stars. 1 reviewsCold Case Radiators 31.5 x 18.5 x 3 in. Driver Side Inlet Passenger Side Outlet Radiator & Fan for 1978-1988 G-Body GM - Polished $714.92
$71492current price $714.92Cold Case Radiators 31.5 x 18.5 x 3 in. Driver Side Inlet Passenger Side Outlet Radiator & Fan for 1978-1988 G-Body GM - Polished
CCIYU Aluminum Radiator 1488 Replacement Radiator 1994-1996 for Mustang $72.25
Sponsored$7225current price $72.25CCIYU Aluminum Radiator 1488 Replacement Radiator 1994-1996 for Mustang
Shipping, arrives in 3+ daysAluminum Cooling Radiator 2 Row for Chevy GM SBC Universal 28" x 19" $116.66
Sponsored$11666current price $116.66Aluminum Cooling Radiator 2 Row for Chevy GM SBC Universal 28" x 19"
Shipping, arrives in 3+ daysCold Case Radiators 67-69 GM F-Body LS Aluminum Radiator $714.54
$71454current price $714.54Cold Case Radiators 67-69 GM F-Body LS Aluminum Radiator
Cold Case Radiators 67-69 Camaro BB / Firebi rd MT Radiator &16in Fan $716.99
$71699current price $716.99Cold Case Radiators 67-69 Camaro BB / Firebi rd MT Radiator &16in Fan
15 out of 5 Stars. 1 reviewsCold Case Radiators 67-69 Camaro BB / Firebi rd MT $372.32 Was $423.54
$37232current price $372.32, Was $423.54$423.54Cold Case Radiators 67-69 Camaro BB / Firebi rd MT

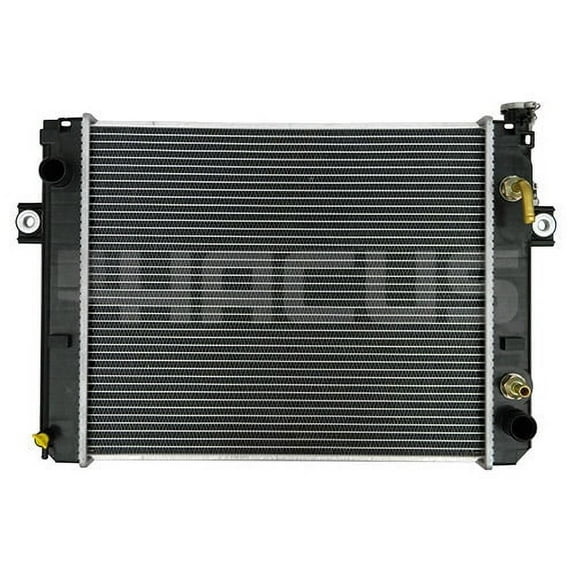

FPE - Forklift RADIATOR 164103171171 HACUS Aftermarket - New $687.75
