Hero image 0 of Champion 196cc General Purpose Horizontal Replacement Engine, 0 of 3

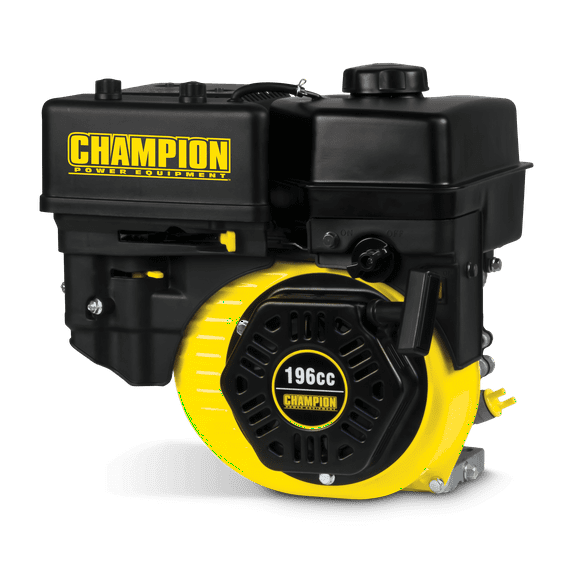

Champion 196cc General Purpose Horizontal Replacement Engine
Key item features
- Engine Performance: This 196cc engine delivers a maximum torque of 8.1 lb-ft at 2800 RPM, featuring a 4-stroke, single-cylinder OHV design for clean operation.
- Durable Construction: The engine incorporates a cast iron sleeve and a ball bearing supported crankshaft, ensuring robust and reliable performance.
- Fuel & Oil Capacity: It is equipped with a 0.9-gallon fuel tank and a 0.6-quart oil capacity, recommending 10W-30 oil.
- Crankshaft Specifications: Features a straight crankshaft with a 3/4-inch diameter, a 5/16-inch-24 UNF threaded end hole, and a 3/16-inch keyway.
- Safety Features: Includes an automatic low oil shut-off sensor and a fuel shut-off valve for enhanced operational safety.
- Mounting Details: The shaft mount bolt pattern is 2.56-inch square (5/16-inch - 24 UNF), with a 4.17-inch PTO height and counterclockwise rotation.
- Operational Compliance: This engine is EPA certified and 50-state CARB compliant, ensuring adherence to environmental standards.
Generated by AI
Specs
- BrandChampion Power Equipment
- Rec. useReplacement, Engine
- Weight35.7 lbs
- Model100220
Current price is USD$184.17
Price when purchased online
Out of stock
How do you want your item?
Out of stock
Similar items you might like
Based on what customers bought
Mustrod 7HP 212cc 4-Stroke OHV Recoil Start Gas Engine Motor Industrial 3600 RPM Horizontal Shaft $119.00
Sponsored$11900current price $119.00Mustrod 7HP 212cc 4-Stroke OHV Recoil Start Gas Engine Motor Industrial 3600 RPM Horizontal Shaft
104.2 out of 5 Stars. 10 reviewsShipping, arrives in 3+ daysEfficient 200cc Gasoline Engine - 6.5L Large Fuel Tank, Low Noise Design, Suitable for Various Agricultural and Cleaning Equipment $104.80
$10480current price $104.80Efficient 200cc Gasoline Engine - 6.5L Large Fuel Tank, Low Noise Design, Suitable for Various Agricultural and Cleaning Equipment
53.8 out of 5 Stars. 5 reviews6.5HP 4-Stroke Gasoline Engine,3kW Power,Air-Cooled,Pull Start,Ideal for Pumping & Tilling Machines,6.5L Fuel Tank,Durable & Safe $126.36 Was $140.40
$12636current price $126.36, Was $140.40$140.406.5HP 4-Stroke Gasoline Engine,3kW Power,Air-Cooled,Pull Start,Ideal for Pumping & Tilling Machines,6.5L Fuel Tank,Durable & Safe
15.7*10 High Safety Electric Start OHV Gasoline Engine Side Shaft 212CC 7.5HP 4-Stroke Black For Go Kart $164.90
$16490current price $164.9015.7*10 High Safety Electric Start OHV Gasoline Engine Side Shaft 212CC 7.5HP 4-Stroke Black For Go Kart
7.5HP 4-Stroke Engine, Fit for Agricultural Equipment Series 212CC $120.10
$12010current price $120.107.5HP 4-Stroke Engine, Fit for Agricultural Equipment Series 212CC
ANLIBATT 212cc 7HP EPA Gas Engine 4-Stroke Horizontal Shaft Recoil Starter Multi-Purpose Replacement Motor for Lawn Mower Go Kart $189.99
3 optionsAvailable in additional 3 options$18999current price $189.99ANLIBATT 212cc 7HP EPA Gas Engine 4-Stroke Horizontal Shaft Recoil Starter Multi-Purpose Replacement Motor for Lawn Mower Go Kart
44.3 out of 5 Stars. 4 reviewsBest seller Aceup Energy 7HP 212cc Gas Engine Horizontal Shaft, 4 Stroke OHV Gas Motor, Shaft 3/4" (19mm) Diameter Recoil Start $142.88
Best seller
3 optionsAvailable in additional 3 options$14288current price $142.88Aceup Energy 7HP 212cc Gas Engine Horizontal Shaft, 4 Stroke OHV Gas Motor, Shaft 3/4" (19mm) Diameter Recoil Start
1034 out of 5 Stars. 103 reviews2-Stroke Gasoline Engine 2.2kW – 7,500 RPM High Power, Lightweight & Efficient with Long Service Life – Ideal for Lawn, Garden & Construction Equipment $94.40
$9440current price $94.402-Stroke Gasoline Engine 2.2kW – 7,500 RPM High Power, Lightweight & Efficient with Long Service Life – Ideal for Lawn, Garden & Construction Equipment
3600rpm Gasoline Engine, For Construction Machinery Model 212CC $120.10
$12010current price $120.103600rpm Gasoline Engine, For Construction Machinery Model 212CC
212CC 7.5hp 4-stroke Gasoline Engine Steel Start Engine Manual $120.00
$12000current price $120.00212CC 7.5hp 4-stroke Gasoline Engine Steel Start Engine Manual
11 out of 5 Stars. 1 reviews212CC 4-stroke Black Engine 3600rpm Modern Gasoline Engine Portable Engine for Agricultural Equipment $120.10
$12010current price $120.10212CC 4-stroke Black Engine 3600rpm Modern Gasoline Engine Portable Engine for Agricultural Equipment
4-Stroke 6.5HP 200cc Gas Engine For GX160 OHV Air Cooled Horizontal Shaft $124.80
$12480current price $124.804-Stroke 6.5HP 200cc Gas Engine For GX160 OHV Air Cooled Horizontal Shaft
36*25*32cm 4-Stroke Pull Start Gas Engine Motor For Honda GX160 Go Kart 6.5HP OHV Air Cooled Pullstart $124.90
$12490current price $124.9036*25*32cm 4-Stroke Pull Start Gas Engine Motor For Honda GX160 Go Kart 6.5HP OHV Air Cooled Pullstart
15 out of 5 Stars. 1 reviews4 Stroke Diesel Engine Motor Single Cylinder For Small Agricultural Machinery 1650-3800rpm with Air-Cooling System for Garden, Farming and Transport Die-Casting Aluminum $220.50
$22050current price $220.504 Stroke Diesel Engine Motor Single Cylinder For Small Agricultural Machinery 1650-3800rpm with Air-Cooling System for Garden, Farming and Transport Die-Casting Aluminum
4-stroke 15HP Single Cylinder Gasoline Engine 420cc Horizontal Gas Engine $228.10
$22810current price $228.104-stroke 15HP Single Cylinder Gasoline Engine 420cc Horizontal Gas Engine
Proven Part Engine Maintenance Tune Up Kit For Kawasaki Fx651V Fx691V Fx730V 99969-6527 $49.95
$4995current price $49.95Proven Part Engine Maintenance Tune Up Kit For Kawasaki Fx651V Fx691V Fx730V 99969-6527
Carburetor Kit for Tecumseh 8HP 9HP 10HP HM80 HM100 640152 640260 Coleman 5000 $26.99
$2699current price $26.99Carburetor Kit for Tecumseh 8HP 9HP 10HP HM80 HM100 640152 640260 Coleman 5000
160cc 6.5HP Gasoline Engine GX160, Overhead Valve, Air Cooled, 4-Stroke, Single Cylinder, Pull Start, Low Fuel Consumption for Generator, Lawnmower, Pump & More $155.97
$15597current price $155.97160cc 6.5HP Gasoline Engine GX160, Overhead Valve, Air Cooled, 4-Stroke, Single Cylinder, Pull Start, Low Fuel Consumption for Generator, Lawnmower, Pump & More
4-Stroke Gasoline Engine,1kW Max Power,6500rpm Speed,0.17gal Fuel Tank,Air-Cooled Single-Cylinder,Hand-Pull Start,for Garden & Small Machinery $117.45 Was $130.50
$11745current price $117.45, Was $130.50$130.504-Stroke Gasoline Engine,1kW Max Power,6500rpm Speed,0.17gal Fuel Tank,Air-Cooled Single-Cylinder,Hand-Pull Start,for Garden & Small Machinery
Miumaeov 4-Stroke 3 HP Engine Single Cylinder Air Cooled For Small Agricultural Machinery $212.97
$21297current price $212.97Miumaeov 4-Stroke 3 HP Engine Single Cylinder Air Cooled For Small Agricultural Machinery
About this item
Product details
The Champion Power Equipment 100220 196cc General Purpose Replacement Engine is designed to provide reliable power for most small engine applications. Whether you need to replace the engine in your pressure washer, compressor, cement mixer, snow blower, log splitter, transfer pump, chipper shredder or other application, you can count on a Champion replacement engine to power your life. This small but mighty engine comes with a 0.9-gallon fuel tank and a 0.6-quart oil capacity (recommended 10W-30). Producing a max torque of 8.1 lb-ft (11 Nm) at 2800 RPM, the 4-stroke, single cylinder OHV engine has a straight crankshaft with a 3/4-inch diameter, a 5/16-inch- 24 UNF threaded end hole, a 3/16-inch keyway, a 2.56-inch square (5/16-inch - 24 UNF) shaft mount bolt pattern, a 4.17-inch PTO height, and counterclockwise rotation. Champions reliable and durable engine also features an adjustable throttle, plus this engine is designed for safety with the fuel shut-off valve and automatic low oil shut-off sensor. Buy this EPA certified and CARB compliant engine with confidence. Champion Support and our nationwide network of service centers will back up your purchase with a 2-year limited warranty and free lifetime technical support.
- The automatic compression release allows for low effort recoil starts
- 4-stroke durable OHV design for clean and cool operation, produces a max torque of 8.1 lb-ft at 2800 RPM
- The 196cc engine has a cast iron sleeve and a ball bearing supported crankshaft
- EPA certified and 50-state CARB compliant with automatic low oil shut-off sensor
- Champion Support includes 2-year limited warranty with free lifetime technical support from dedicated experts
