CC1101 Wireless Transceiver Module 433MHz 2500NRF Distance Transmission Board OOK ASK MSK Modulation Programable Control

(6) Center frequency: 433MHZ
(7) The open transmission distance is 300 meters to 500 meters
Using SPI interface
Wireless wake-up function; support low-power electric carbon wave activation function, wirelessly wake up devices in low-power sleep states
Low current consumption: 15.6mA in receiving mode, less than 0.5uA in sleep mode
PIN FUNCTION
(1) GND: The negative pole of the power supply.
(2) VCC: Positive power supply.
(3) : Module chip select pin, used to start a SPI communication.
(4) : Module SPI bus clock.
(5) MOSI: Module SPI data input pin.
(6) : module SPI data output pin.
(7) GDO0: Module information output pin
(8) GDO2: Module information output pin.
Colour: Blue
Material: Metal

Package Contents:

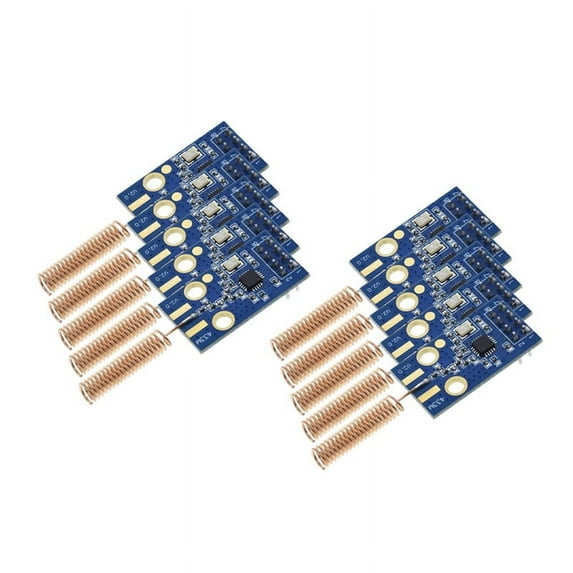

10 x CC1101 Wireless Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
