Features:
*User-Friendly: This stepper motor driver controller module offers a simple and easy-to-use solution for controlling the speed, direction, and PWM signal generation of your stepper motor system.
*Safe and Reliable: With a wide input voltage range of 8-24V and built-in safety features, this stepping motor controller module ensures safe and reliable operation for your stepper motor control needs.
*Comprehensive Functionality: Featuring adjustable frequency signals (high: 5.4k-160kHz, medium: 540-16.6kHz, low: 80-2.4kHz) and the ability to generate both pulse and PWM signals, this PWM signal generating controller module provides comprehensive functionality to meet different control requirements.
*Direction Control: This stepper motor pulse signal generating module allows for easy switching between clockwise and counterclockwise rotation, giving you full control over the direction of your stepper motor.
*Compact Size: With dimensions of 58.00x51.00x13.00mm (2.28x2.01x0.51 inches), this stepper drive control module is compact and space-saving, making it suitable for various applications where size constraints may be a concern.
Specifications:

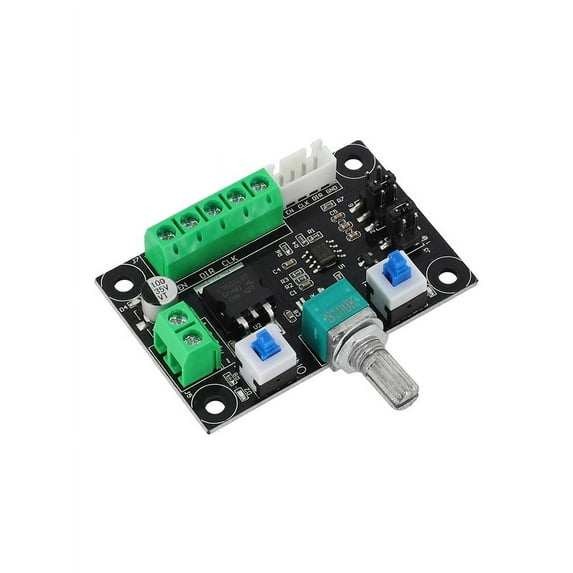

*Part Name:Stepper Motor Controller
*Material:ABS
*Size:58.00x51.00x13.00mm (2.28x2.01x0.51 inches)
*Color:Black, Green
*Input Voltage: 8~24V
*Frequency Paradigm: High 5.4k-160khz, Medium 540-16.6khz, Low 80-2.4khz
*Signal Type: Pwm/Pulse
*Direction: Clockwise/Counterclockwise
Package Content:
*Stepper Motor Controller
Note:
. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
