AudioControl DM-RTA-PRO-KIT Real Time Analyzer And Multi-test Tool Kit
(No ratings yet)
Key item features
- Test and Measure Any Signal
- Balanced Line Level Inputs and Outputs
- Unbalanced Line Level Inputs and Outputs
- Speaker Level Inputs (accepts up to 30 V)
- Microphone Input with 48V Phantom Power
Specs
- BrandAudio Control
- Height16.5 in
- Weight13 lb
- ModelDM-RTA-PRO-KIT
- MaterialABS
- Has written warrantyNo
Current price is USD$899.99
Price when purchased online
Out of stock
How do you want your item?
Out of stock
About this item
Product details
REAL TIME ANALYZER AND MULTI-TEST TOOL KIT

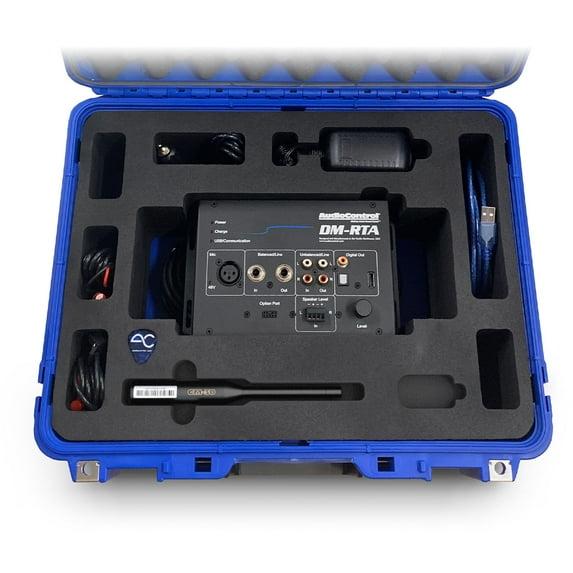

The DM-RTA Pro Kit includes everything you need for a complete mobile audio measurement solution. Nestled snuggly in the fetching blue hard case, you will find a DM-RTA, AC power supply, the CM-30 measurement microphone, all of the required interconnects, and custom test leads for line-level and speaker-level measurements.
Included in kit
DM-RTA Real Time Analyzer
110V AC power supply/charging adapter (DM-RTA)
12V DC power supply/charging adapter (DM-RTA)
USB A to B cable
USB A to A cable
CM-30 measurement microphone
XLR microphone cable
Speaker input to spring-loaded test leads cable
RCA input to spring-loaded test leads cable
AudioControl tuning pick (looks a lot like a guitar pick)
Blue hard case with laser-cut foam
SPECIFICATIONS
DM-RTA
INPUTS
1 x Balanced (Input Impedance 3.24kΩ)
1 x Unbalanced (Input Impedance 3.24kΩ)
1 x Microphone (Input Impedance 10kΩ)
1 x Speaker Level (Input Impedance 16.24kΩ)
Max Low Level Input Voltage: 8 Vrms
Max High Level Input Voltage: 40 Vrms
OUTPUTS
1 x Balanced (Output Impedance: 51Ω)
1 x Unbalanced (Output Impedance: 51Ω)
1 x Coax Digital (Output Impedance: 75Ω)
1 x Toslink
1 x USB
Max Output Voltage from Signal Generator: 5 Vrms / 7 V Peak
GENERAL
Power Supply:
Battery Life: ~5 Hours
WEIGHTS & DIMENSIONS
Dimensions: 8”W x 4.8”D x 2.4”H
Weight: 2.6lbs (1.2kg)
IN THE BOX: DM-RTA, USB Cable, Power Supply, Manual, Warranty
CM-30
Performance
Frequency Response: 20Hz – 20kHz
Sensitivy: -32 dB ± 2 dB (0 dB = 1V/Pa at 1 kHz)
Max SPL: 138 dB SPL
Connector: 3 pin XLR, pin 2 positive
WEIGHTS & DIMENSIONS
Dimensions: 16.5”W x 16”D x 7”H
Weight (with included product): 13.0 lbs. (5.9 kg)
The DM-RTA Pro Kit includes everything you need for a complete mobile audio measurement solution. Nestled snuggly in the fetching blue hard case, you will find a DM-RTA, AC power supply, the CM-30 measurement microphone, all of the required interconnects, and custom test leads for line-level and speaker-level measurements.
Included in kit
DM-RTA Real Time Analyzer
110V AC power supply/charging adapter (DM-RTA)
12V DC power supply/charging adapter (DM-RTA)
USB A to B cable
USB A to A cable
CM-30 measurement microphone
XLR microphone cable
Speaker input to spring-loaded test leads cable
RCA input to spring-loaded test leads cable
AudioControl tuning pick (looks a lot like a guitar pick)
Blue hard case with laser-cut foam
SPECIFICATIONS
DM-RTA
INPUTS
1 x Balanced (Input Impedance 3.24kΩ)
1 x Unbalanced (Input Impedance 3.24kΩ)
1 x Microphone (Input Impedance 10kΩ)
1 x Speaker Level (Input Impedance 16.24kΩ)
Max Low Level Input Voltage: 8 Vrms
Max High Level Input Voltage: 40 Vrms
OUTPUTS
1 x Balanced (Output Impedance: 51Ω)
1 x Unbalanced (Output Impedance: 51Ω)
1 x Coax Digital (Output Impedance: 75Ω)
1 x Toslink
1 x USB
Max Output Voltage from Signal Generator: 5 Vrms / 7 V Peak
GENERAL
Power Supply:
Battery Life: ~5 Hours
WEIGHTS & DIMENSIONS
Dimensions: 8”W x 4.8”D x 2.4”H
Weight: 2.6lbs (1.2kg)
IN THE BOX: DM-RTA, USB Cable, Power Supply, Manual, Warranty
CM-30
Performance
Frequency Response: 20Hz – 20kHz
Sensitivy: -32 dB ± 2 dB (0 dB = 1V/Pa at 1 kHz)
Max SPL: 138 dB SPL
Connector: 3 pin XLR, pin 2 positive
WEIGHTS & DIMENSIONS
Dimensions: 16.5”W x 16”D x 7”H
Weight (with included product): 13.0 lbs. (5.9 kg)
- Test and Measure Any Signal
- Balanced Line Level Inputs and Outputs
- Unbalanced Line Level Inputs and Outputs
- Speaker Level Inputs (accepts up to 30 V)
- Microphone Input with 48V Phantom Power
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Brand
Audio Control
Height
16.5 in
Weight
13 lb
Model
DM-RTA-PRO-KIT
Warranty
Warranty information
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
Similar items you might like
Based on what customers bought

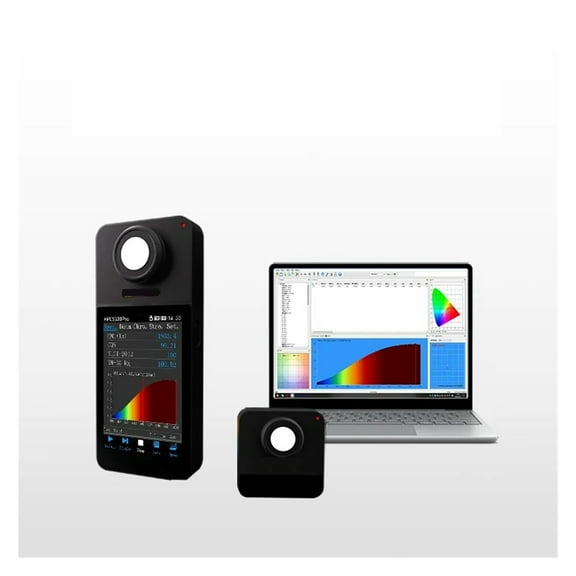

HPCS-330Pro VIS NIR Spectrometer Irradiance Meter mW/cm2 with Pc Software $1,299.00
$1,29900current price $1,299.00HPCS-330Pro VIS NIR Spectrometer Irradiance Meter mW/cm2 with Pc Software
SA6 Handheld Spectrum Analyzer 6GHz, 2in1 Signal Generator,with 3.2-inch Touch Screen, PC Control,For Laboratory Workshops ,Signal Generator $487.03
2 optionsAvailable in additional 2 options$48703current price $487.03SA6 Handheld Spectrum Analyzer 6GHz, 2in1 Signal Generator,with 3.2-inch Touch Screen, PC Control,For Laboratory Workshops ,Signal Generator

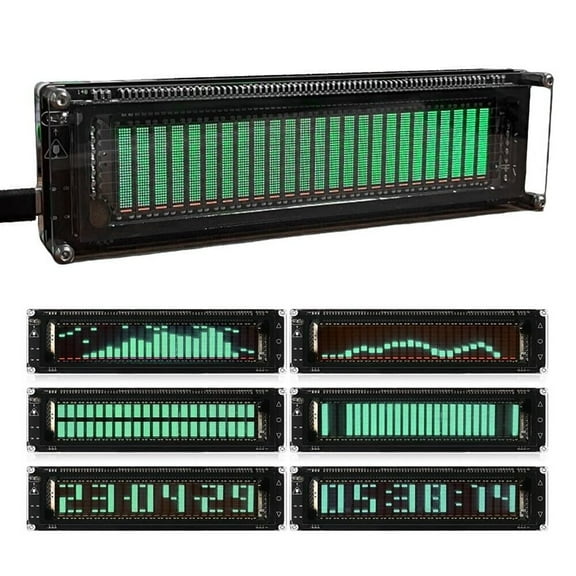

yaaqii AK2515 Pro Audio Spectrum Analyzer, VFD Display Music Sound Visualizer 3.5mm AUX $66.67
$6667current price $66.67yaaqii AK2515 Pro Audio Spectrum Analyzer, VFD Display Music Sound Visualizer 3.5mm AUX

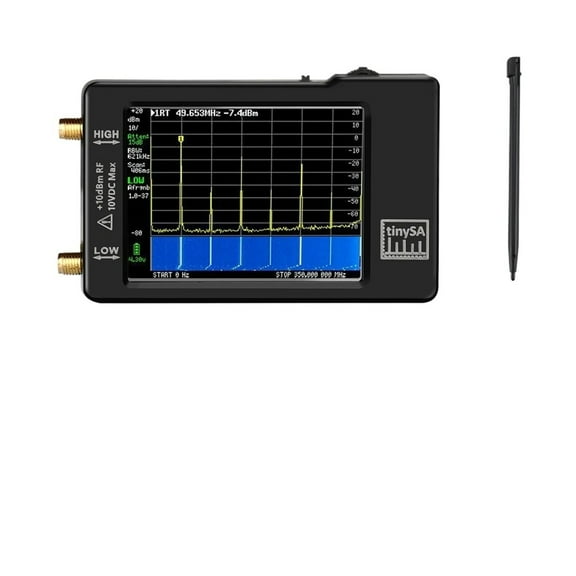

Hand Held Spectrum Analyzer 2.8" Display 100kHz To 960MHz With ESD Proteced Version V0.3.1_E With Battery ,Compact and Portable $113.47
$11347current price $113.47Hand Held Spectrum Analyzer 2.8" Display 100kHz To 960MHz With ESD Proteced Version V0.3.1_E With Battery ,Compact and Portable

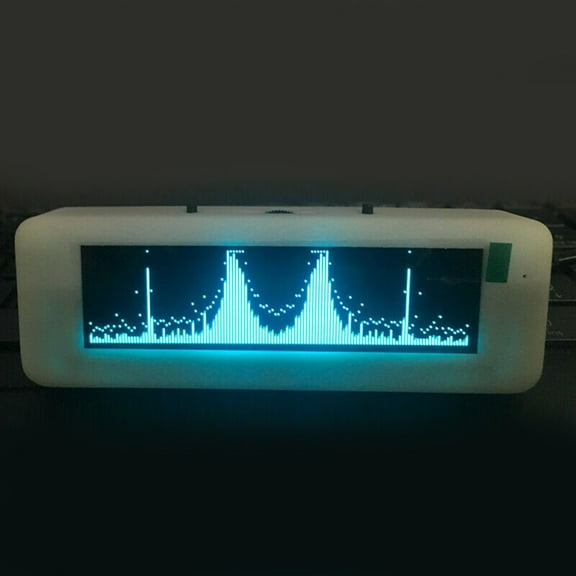

Clupup 3.12" for OLED Music Spectrum Display Analyzer Audio Level Indicator VU Meter $70.35
3 optionsAvailable in additional 3 options$7035current price $70.35Clupup 3.12" for OLED Music Spectrum Display Analyzer Audio Level Indicator VU Meter
Clupup Innovative Portable Antenna Analyzer for Radio Enthusiasts and Engineers $23.39
$2339current price $23.39Clupup Innovative Portable Antenna Analyzer for Radio Enthusiasts and Engineers

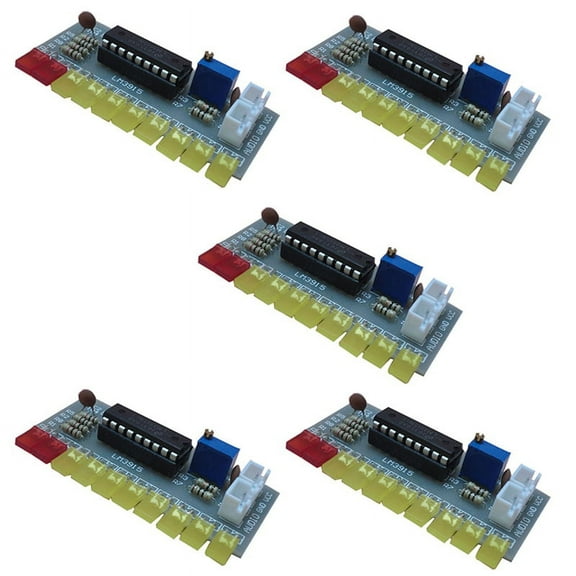

5X LM3915 Audio Level Indicator Diy Kit 10 Led Sound Audio Spectrum Analyzer Level Indicator Kit Electoronics Soldering $9.07
$907current price $9.075X LM3915 Audio Level Indicator Diy Kit 10 Led Sound Audio Spectrum Analyzer Level Indicator Kit Electoronics Soldering
LTDZ_35M-4400M USB Spectrum Analyzer Module Spectrum Signal Source RF Frequency Domain Analysis Tool Accessories $48.11 Was $64.26
$4811current price $48.11, Was $64.26$64.26LTDZ_35M-4400M USB Spectrum Analyzer Module Spectrum Signal Source RF Frequency Domain Analysis Tool Accessories

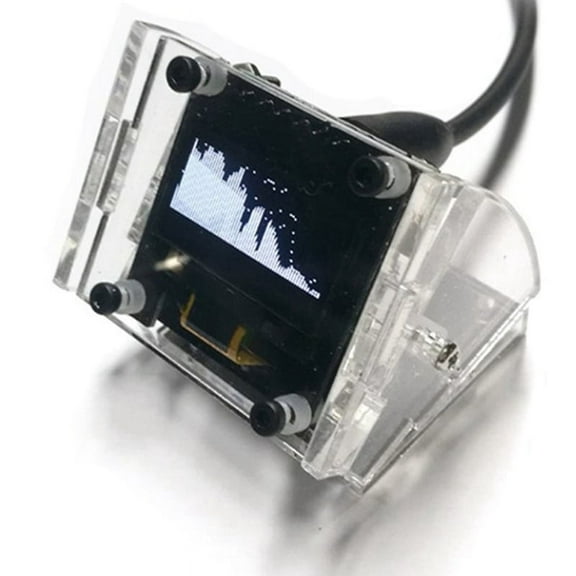

0.96 Inch OLED Music Spectrum Display Analyzer Screen Amplifier Audio Indicator Rhythm Analyzer VU METER Voice Control $20.69
$2069current price $20.690.96 Inch OLED Music Spectrum Display Analyzer Screen Amplifier Audio Indicator Rhythm Analyzer VU METER Voice Control

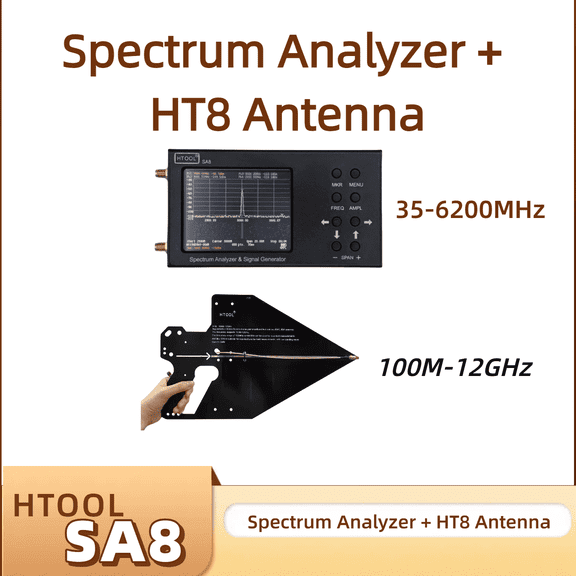

HTool SA8 Portable Spectrum Analyzer 35-6200MHz with Tracking Generator HT8, for RF Signal Analysis and Educational Use $329.70
$32970current price $329.70HTool SA8 Portable Spectrum Analyzer 35-6200MHz with Tracking Generator HT8, for RF Signal Analysis and Educational Use

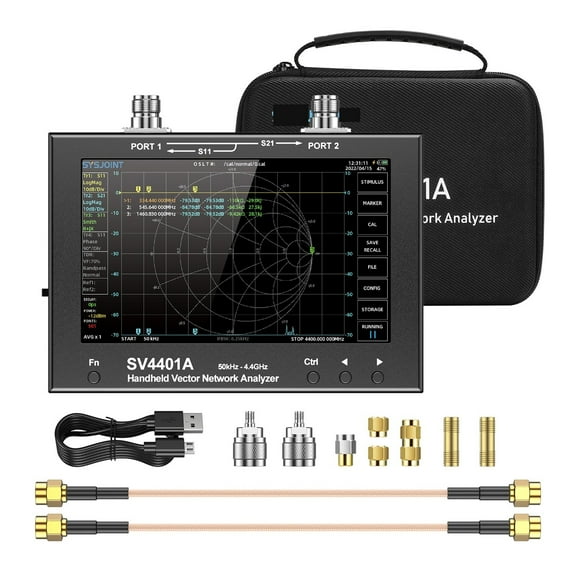

7" Touch LCD 50KHz-4.4GHz VNA VNA Vector Network Antenna Analyzer UHF HF VHF SWR 100db Dynamic NanoVNA Tester ,Signal Generator $611.11
$61111current price $611.117" Touch LCD 50KHz-4.4GHz VNA VNA Vector Network Antenna Analyzer UHF HF VHF SWR 100db Dynamic NanoVNA Tester ,Signal Generator

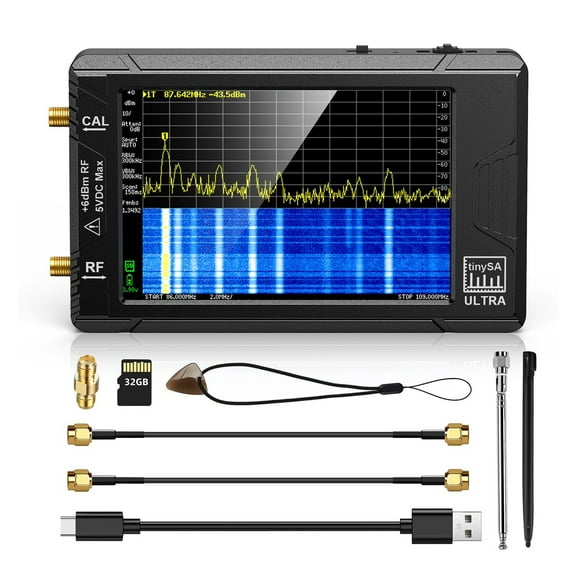

Spectrum Analyzer TinySA ULTRA 4" Display 100kHz To 5.3GHz With 32GB Card Version V0.4.5.1 Network Internal Lan Tester ,Compact and Portable $237.05
$23705current price $237.05Spectrum Analyzer TinySA ULTRA 4" Display 100kHz To 5.3GHz With 32GB Card Version V0.4.5.1 Network Internal Lan Tester ,Compact and Portable

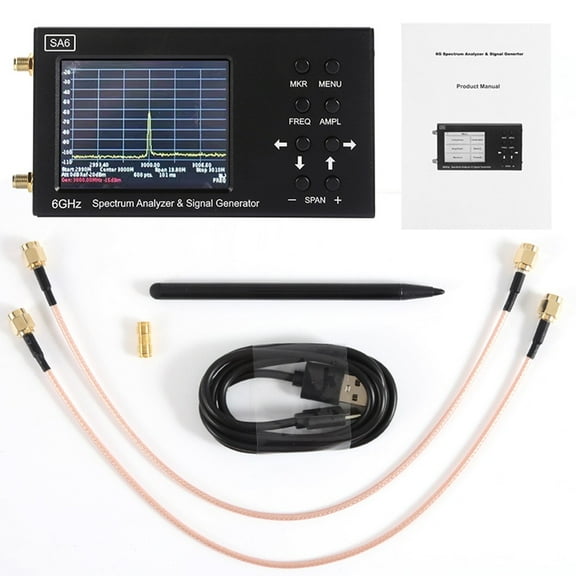

Portable Rf Solution The Sa6 Spectrum Analyzer For On Site Measurements $285.23
$28523current price $285.23Portable Rf Solution The Sa6 Spectrum Analyzer For On Site Measurements

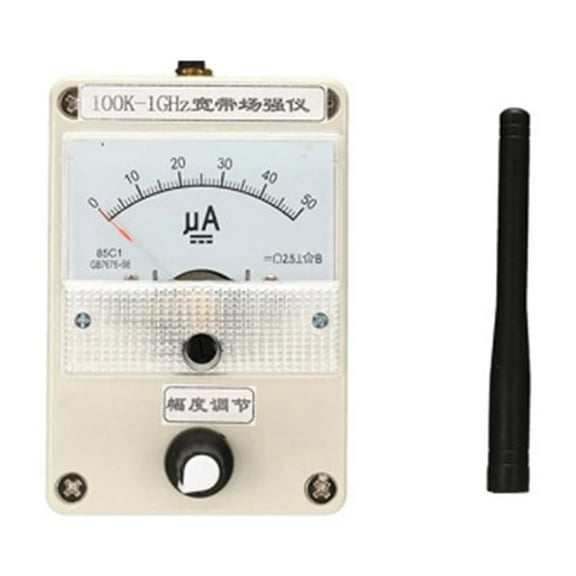

Rf Spectrum Analyzer With Adjustable Amplitude For Sensitivity Testing $34.05
$3405current price $34.05Rf Spectrum Analyzer With Adjustable Amplitude For Sensitivity Testing

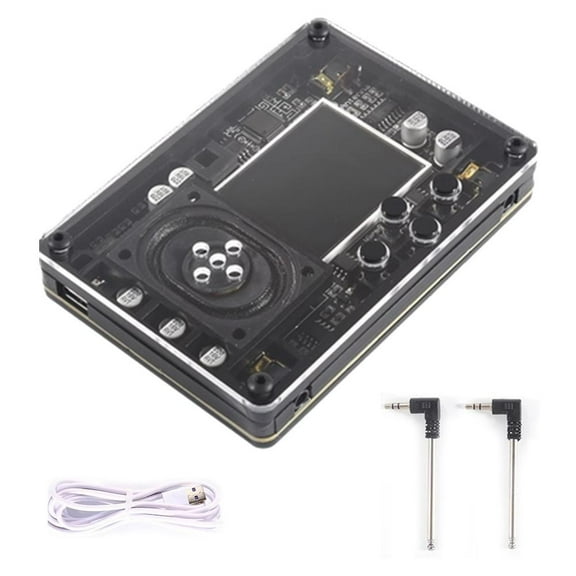

Mini Theremin sical Elecic Creative Instrument D9T9 Modul sical U5S0 $41.47
$4147current price $41.47Mini Theremin sical Elecic Creative Instrument D9T9 Modul sical U5S0
VU56 PRO Music Spectrum Analyzer with Real Time Audio Monitoring Features $14.24
$1424current price $14.24VU56 PRO Music Spectrum Analyzer with Real Time Audio Monitoring Features
RANMEI Ak2515 Pro Audio Spectrum Analyzer Vfd Display Music Sound Visualizer 3.5Mm Aux For Electrical Equipment Tool Accessory $66.01
$6601current price $66.01RANMEI Ak2515 Pro Audio Spectrum Analyzer Vfd Display Music Sound Visualizer 3.5Mm Aux For Electrical Equipment Tool Accessory

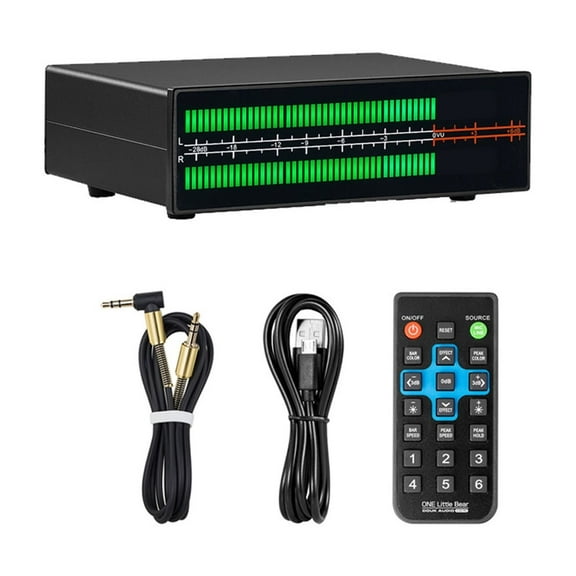

VU56-PRO Two-color 2*56 Bit LED Stereo Music Spectrum Analyzer Level Meter ,Compact and Powerful $169.54
$16954current price $169.54VU56-PRO Two-color 2*56 Bit LED Stereo Music Spectrum Analyzer Level Meter ,Compact and Powerful
Spectrum Analyzer TinySA ULTRA 4" Display 100kHz to 5.3GHz, V0.4.5.1 Network Internal Lan Tester with 32GB Card Version ,Easy to Use $258.42
$25842current price $258.42Spectrum Analyzer TinySA ULTRA 4" Display 100kHz to 5.3GHz, V0.4.5.1 Network Internal Lan Tester with 32GB Card Version ,Easy to Use

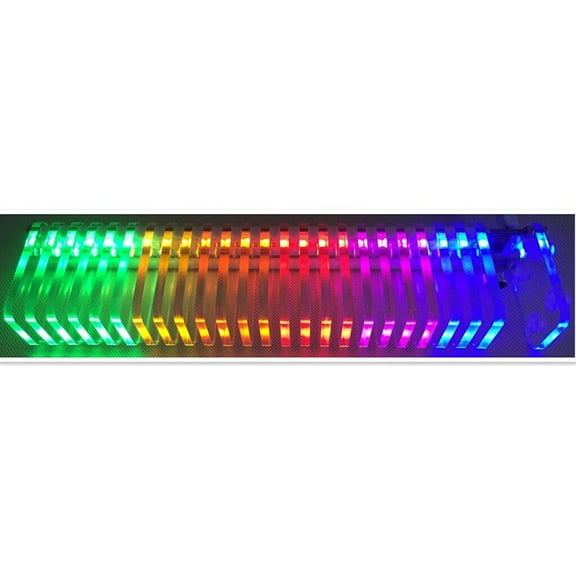

Audio Visualizer Music Spectrum Analyzer Music And Art Integration Organic Glass Material Power-Off Memory Function Usb Powered $34.98
