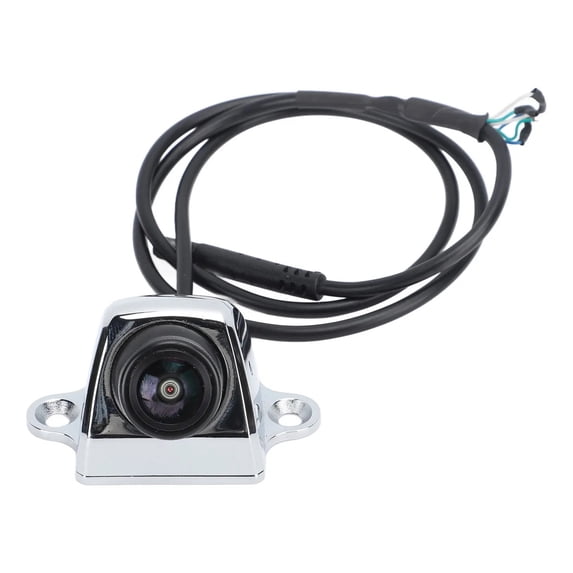

Backup Camera with 360 Degree Night Vision, Rotatable 12-24V for Yacht, Boat, SUV, Motorhome and Truck
Characteristics:
CLEAR IMAGES: The backup camera adopts a high-performance chip, which ensures high frame rate and at the same time provides clear, truly high-definition and smooth images. INSTALLATION AREA: The car reversing camera can be installed in the front, rear, left and right visual blind areas of the vehicle to monitor them in real time. IP67 TESTED: The reversing camera is IP67 tested and tested, so it easily presents clear and stable images at night or in rainy days. 150 DEGREE HORIZONTAL: This rear view camera has a larger viewing angle, with better night vision, providing more comprehensive protection. Widely used: The reversing camera can be applied to RVs, yachts, boats, cars, SUVs, motorhomes, trucks, buses, etc., can be used indoors and outdoors.
Specification
: item type
: suspension chamber Material
: metal Triple switching: scale line, mirror image, system switching)
Image Sensor: PC B030
Front and rear view View line
switchable (blue line) Switchable scale line (white line)
Standard: PAL, NTSC switchable (Green Line)
Effective pixels: 720 x 488
Horizontal resolution: 1000 TV lines
Horizontal angle: 150 degrees
Detection area: 3.8mm x 2.9mm
Shutter speed: 1-1/12000
Gamma value: 0.45
Minimum illumination: 0.01 lx/equal sign 1.2 (0 Lx, IR on)
Power consumption: 130 mA Power supply
Power: 12 to 24 V DC
Operating temperature: -20 degrees Celsius to 75 degrees Celsius, relative humidity, 95 percent,
Maximum storage temperature: 40 degrees Celsius, 80 degrees Celsius RH, 95 percent,
Maximum test rating: IP67,
night vision color camera,
Applicable Models: Universal products, can be applied to caravans, yachts, boats, cars, SUVs, motorhomes, trucks, buses, etc.
Package list:
1 camera, 1
wire harness,
1 instruction manual,
1 pack of mounting accessories (4 pieces)
