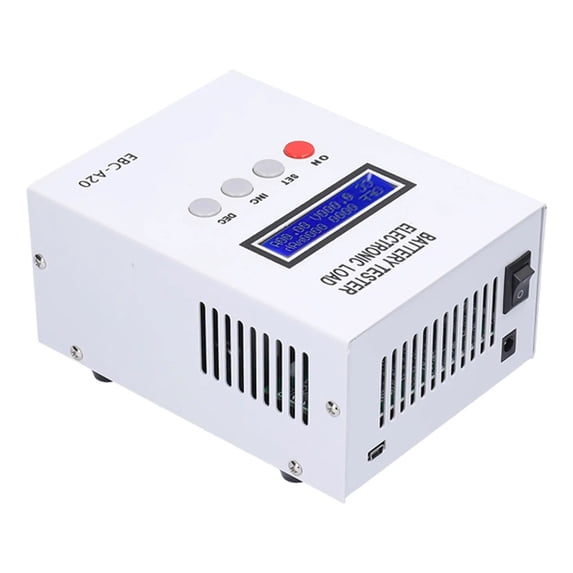

Applicable to Battery Capacity Testing Device, Tester

Applicable to

30V 20A 85W Battery Tester Capacity Testing Device 5A Recharge Discharge Support PC Online Discharge Support. Online software control function: Compact size, lightweight and portable, wear-resistant and can provide long service time. Large LCD screen, you can see voltage, current, capacity, time, power, energy and other test data clearly. 5A recharge, 20A discharge, maximum power is 85W. 3 working modes adjustable design, you can set SC-CC, DSC-CP, CHG-CV according to your demands. Multifunctional, can be used to test battery capacity, simulate constant power equipment and test lithium and lead-acid batteries. Supports separate reload-discharge and reload-discharge-reload tests. Supports computer online control, curve plotting, calibration benchmarking, firmware upgrade, recharge/discharge cycle, etc. Two optional configurations, you can choose according to your needs. Specification: Specifications: Name: battery tester Model: EBC-A20 Material: aluminum alloy Voltage setting: discharge: 0.00-30.00V, the minimum 0.01V recharge step: 0.00-18.00V, the minimum step 0.01V Current setting: discharge: 0.10-20.00A Minimum step 0.01A (automatic limit current when exceeds power) Recharge: 0.10-5.00 A Minimum step 0.01 A (the maximum current is less than the supply current when the voltage is above 10V) Mode setting: DSC-CC: discharge current is constant, can be used to test battery capacity DSC-CP discharge power is constant, used to simulate constant power equipment CHG-CV: constant current constant voltage recharge, applicable to test batteries Lithium and lead-acid Automatic recharge and discharge: Support automatic recharge, discharge and recharge mode, can be used to test battery capacity. Test voltage: 0.000-4.500 V (low pressure gear), accuracy of 0.003 V, error of plus or minus 0.5 percent, 4.50 V-30.00 V (high pressure gear), accuracy of 0.01 V, error of plus or minus 0.5 percent, test current: 0.1-20.00 A, error of plus or minus 0.5 percent Test of percentage capacity: 10 Ah, the resolution is 0.001 Ah, 10 Ah, 100 Ah, the resolution is 0.01 Ah Above 100 Ah, the resolution is 0.1 Ah Connection: four-wire detection, voltage test and current channel are separate cables, to ensure measurement accuracy LCD display: voltage, current, capacity, time, power, energy and other test data Online computer: USB A serial port Dedicated TTL (mini USB port, not a normal USB cable) computer control, curve plotting, calibration benchmarking, firmware update, recharge/discharge cycle, etc. Package Size: 280 * 240 * 150mm / 11.02 * 5.45in Package Weight: Single Configuration: 1200g / 2.65lb Standard Configuration: 1800g / 3.97lb Package List: 1 * Battery Tester 1 * Test Lines **NOTE** If you have any questions, we welcome you to contact us via MESSAGES to help you as soon as possible.
