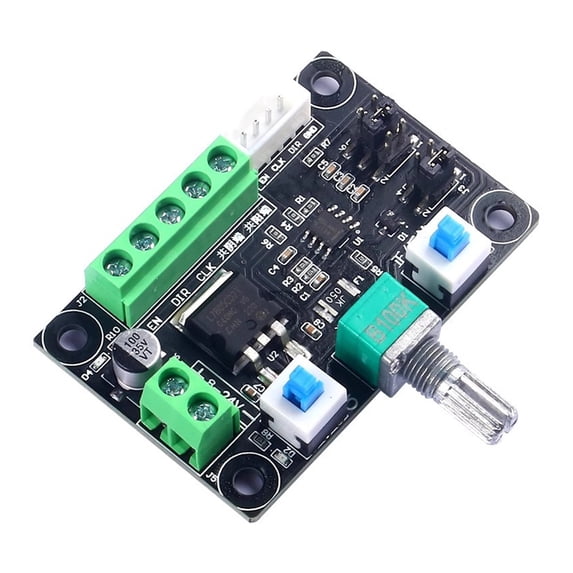

Adjustable Stepper Motor Driver Module DC24V 12V Speed Controller Forward Reverse Rotation Pulses Generator

Features: Technical Specifications: The controller features three frequency signals: High (5.4kHz to 160kHz), Mediumed (540 Hz to 16kHz), and Low (80Hz to 2.4kHz).
User-Friendly: This straightforward configuration—controller + stepper driver + stepper motor + power supply—forms a simple control platform.
Highly Performances: Capable of generating pulses signals and adjustment signals, with selectable skip functionality.
Frequency Measurement: Measurement is possible via both the PUL port and the common (or common anode) port.
High Practicality: This module functions as a pulses generator, conveniently providing the stepper driver as the .
Usage Note: A driver must be fitted to control the stepper motor.

Specifications: Product type: Stepper motor drive control
Component: Plastic
Size: Approximately 38.6x58mm/1.5x2.3inches.
Different stepper motor driver have different labels, but the functions are the same:
EN=ENA=enabled..
DIR=CW=CWW Direction
Connection of common anode (connector B).

Package Includes: 1PC Host module
2PCS Connection cable (red and black, 20cm long)
1PC Chinese and English bilingual instruction manual
