Adams Rite 8410-37136 8400 Series Mortise Exit Device Narrow Stile Glass Doors
(No ratings yet)
Key item features
- Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
- Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
- Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information.
- Cylinder x Fixed Pull: (ANSI/BHMA Function 03): Accepts any standard Rim cylinder.
- 3080 Entry Trim (ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)
- Warranty: Five year limited.
- Handing: Device is non-handed. Lever Entry Trim is field reversible.
- Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
- Bar Height: Standard model adjusts from 30” to 44”.
- Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
- Door Thickness: Suits 1-3/4” standard, up to 2-1/4”.
- Stile Width: 3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”.
- Projection: 2-15/16” when fully projected, 1-15/16”when dogged.
- Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
Specs
- Hardware lock typeMortise Lock
- FeaturesHeavy-Duty
- BrandAdams Rite
- FinishSatin Aluminum Clear
- ColorMultiColor
- Rec. useConstruction
Current price is USD$567.71
Price when purchased online
- Free shipping
Free 30-day returns
Handyman Service
How do you want your item?
Columbus, 43215
Arrives by Wed, Feb 25
|
Sold and shipped by UnbeatableSale
4.16096807415036 stars out of 5, based on 38841 seller reviews(4.2)38841 seller reviews
Free 30-day returns
Other sellers
$567.71
+ $9.98 shippingShipping, arrives by Tue, Feb 24 to Columbus, 43215
Sold and shipped by UnbeatableSale Local
Free 30-day returns
Similar items you might like
Based on what customers bought
Adams Rite 8410-38136 8400 Series Mortise Exit Device with Stile Glass Doors $640.09
$64009current price $640.09+$24.99 shippingAdams Rite 8410-38136 8400 Series Mortise Exit Device with Stile Glass Doors
Shipping, arrives in 3+ daysAdams Rite 861136 Exit Device 8600 Series Narrow Stile Concealed Vert Rod $485.01
$48501current price $485.01Adams Rite 861136 Exit Device 8600 Series Narrow Stile Concealed Vert Rod
Shipping, arrives in 3+ daysAdams Rite eForce Keyless Keypad Entry Lock - Satin Chrome Finish $517.43
$51743current price $517.43Adams Rite eForce Keyless Keypad Entry Lock - Satin Chrome Finish
Shipping, arrives in 3+ daysAdams Rite 7400-313 $290.67
$29067current price $290.67Adams Rite 7400-313
Shipping, arrives in 3+ daysAdams Rite 880136 36 in. 12V Narrow Stile Rim Exit Device, Clear Anodized $352.23
$35223current price $352.23Adams Rite 880136 36 in. 12V Narrow Stile Rim Exit Device, Clear Anodized
Shipping, arrives in 3+ daysBEST Access Systems 8K37D4AS3626 Cylindrical Lock, 9.625" Length $527.10
$52710current price $527.10BEST Access Systems 8K37D4AS3626 Cylindrical Lock, 9.625" Length
Shipping, arrives in 3+ daysAdams Rite 8802-36 Narrow Stile Rim Exit Device For Aluminum Applications 36 In Dark Bronze Anodized Aluminum $346.50 Was $417.20
Now$34650current price Now $346.50, Was $417.20$417.20+$7.98 shippingYou save $70.70You save$70.70Adams Rite 8802-36 Narrow Stile Rim Exit Device For Aluminum Applications 36 In Dark Bronze Anodized Aluminum
Shipping, arrives in 3+ days2.75 in. 9K Series Backset Privacy 15 Lever & D Rose with ANSI Strike, Satin Chrome $487.43
$48743current price $487.43+$7.98 shipping2.75 in. 9K Series Backset Privacy 15 Lever & D Rose with ANSI Strike, Satin Chrome
Shipping, arrives in 3+ daysAdams Rite 4550L-01-121 4 in. Deadlock Lever Trim with Duronotic Clutch $172.03
$17203current price $172.03Adams Rite 4550L-01-121 4 in. Deadlock Lever Trim with Duronotic Clutch
Shipping, arrives in 3+ daysAssa Abloy Accentra Lever Lockset, Mechanical, Privacy, Grade 1 AUCN8802FL x 626 $659.56
$65956current price $659.56Assa Abloy Accentra Lever Lockset, Mechanical, Privacy, Grade 1 AUCN8802FL x 626
Shipping, arrives in 3+ daysRaindrops 2Set Mail Boxes Latch for Outdoor Use with Iron Material 7x7x1.2in $9.80
$980current price $9.80+$3.99 shippingRaindrops 2Set Mail Boxes Latch for Outdoor Use with Iron Material 7x7x1.2in
Shipping, arrives in 3+ daysSliding Glass Dr Rlr Nyln1-1/4 D1522 $20.22
$2022current price $20.22Sliding Glass Dr Rlr Nyln1-1/4 D1522
Shipping, arrives in 3+ daysAdams Rite 4300-30-101-628 Steel Hawk Electrified Deadlatch 1-1/8 Backset Surface Strike Aluminum $301.73
$30173current price $301.73Adams Rite 4300-30-101-628 Steel Hawk Electrified Deadlatch 1-1/8 Backset Surface Strike Aluminum
Shipping, arrives in 3+ daysSelby SYX599P Sash Lock with screws - Brass $13.16
$1316current price $13.16Selby SYX599P Sash Lock with screws - Brass

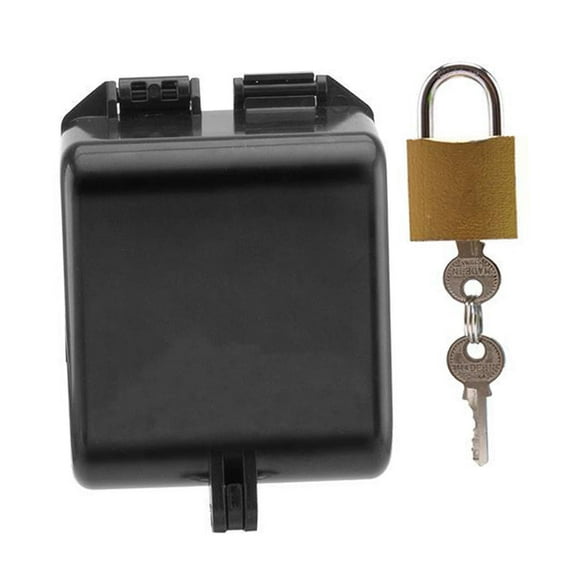

Shipping, arrives in 3+ daysReduced price Kuntesetty Faucet Lock Anti Theft Lock Multifunctional Easy to Install Outdoor Faucet Cover Black $23.99 Was $26.99
Reduced price
Now$2399current price Now $23.99, Was $26.99$26.99You save $3.00You save$3.00Kuntesetty Faucet Lock Anti Theft Lock Multifunctional Easy to Install Outdoor Faucet Cover Black
Shipping, arrives in 3+ daysDetex ECL230DPH UL Listed Panic Hardware Exit Control Lock with Long Bar, Gray $369.56
$36956current price $369.56+$12.99 shippingDetex ECL230DPH UL Listed Panic Hardware Exit Control Lock with Long Bar, Gray
Shipping, arrives in 3+ daysK2 8Q00302 Stanley Commercial Hardware SFIC Tailpiece $14.01
$1401current price $14.01K2 8Q00302 Stanley Commercial Hardware SFIC Tailpiece
Shipping, arrives in 3+ days
About this item
Product details
We are dedicated to give everyone the very best houseware products for all home needs, with a focus on dependability, our client satisfaction and great quality. We provide high-quality modern products to be enjoyed by many clients.
Features- 8400 Series Mortise Exit Device Narrow Stile Glass Doors
- Made of high quality material
- Backset: 1-1/8"
- Bar Type: Flat Bar
- Builders HardwareType: Exit Devices
- Exit Devices Type: Heavy Duty Rim
- Handing: Right Hand Reverse
- Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
- Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
- Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information.
- Cylinder x Fixed Pull: (ANSI/BHMA Function 03): Accepts any standard Rim cylinder.
- 3080 Entry Trim (ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)
- Warranty: Five year limited.
- Handing: Device is non-handed. Lever Entry Trim is field reversible.
- Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
- Bar Height: Standard model adjusts from 30” to 44”.
- Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
- Door Thickness: Suits 1-3/4” standard, up to 2-1/4”.
- Stile Width: 3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”.
- Projection: 2-15/16” when fully projected, 1-15/16”when dogged.
- Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Hardware lock type
Mortise Lock
Features
Heavy-Duty
Brand
Adams Rite
Material
Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
Warranty
Warranty information
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
Warnings
WARNING: WARNING: This product contains chemicals known to the State of California to cause cancer andbirth defects or other reproductive harm.Popular items in this category
