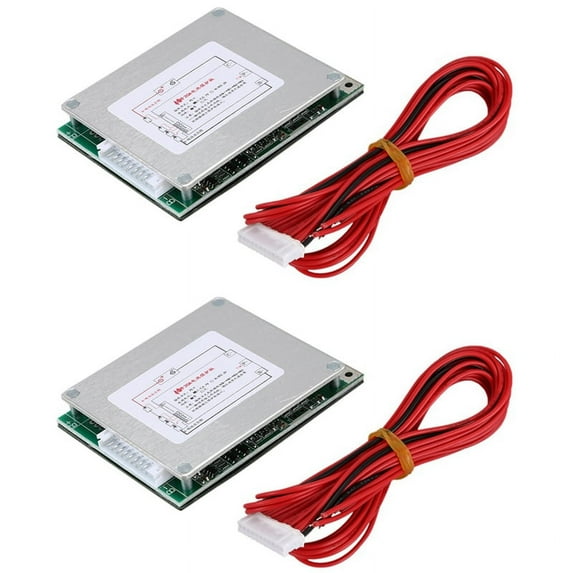

2X 10S 36V 20A Li-Ion Lipolymer Battery Protection Board PCB Board for E-Bike EScooter,2 x Li-ion Battery Protection Board 2 x wire,Silver & green

Overcharge detection voltage: 4.28±0.05V
Overcharge protection delay: 100ms
Overcharge release voltage: 4.08±0.05V
Overdischarge detection voltage: 2.55 ± 0.08V
Overdischarge detection delay: 50ms
Overdischarge release voltage: 3.0±0.1V
Overcurrent detection voltage: 150mV
Overcurrent detection delay: 15ms
Overcurrent protection current: 120±20A
Overcurrent protection release condition: disconnect load
Short circuit protection condition: external load short circuit
Short circuit detection delay: 200uS
Short circuit protection release condition: disconnect load
Main circuit conduction internal resistance: less than equal 15mΩ
Working current: less than equal 40uA
Sleep current (when the battery is over-discharged): less than equal 10uA
Temperature range: -30/+80°C
size:69 x 51.5 x 10mm
Material:Metal + PCB
colour:Silver + green

Package Contents:
2 x Li-ion Battery Protection Board
2 x wire

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
