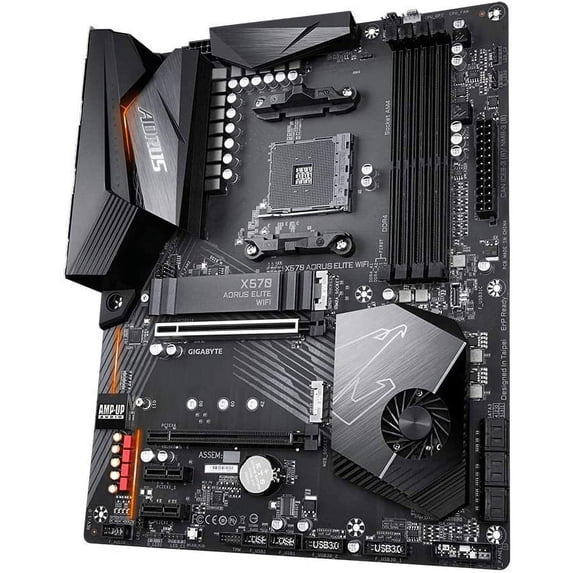

Hero image 0 of GIGABYTE AMD X570 AORUS Motherboard with 12+2 Phase Digital VRM with DrMOS, Advanced Thermal Design with Enlarge Heatsink, 0 of 5

GIGABYTE

GIGABYTE AMD X570 AORUS Motherboard with 12+2 Phase Digital VRM with DrMOS, Advanced Thermal Design with Enlarge Heatsink

Name: GIGABYTE AMD X570 AORUS Motherboard with 12+2 Phase Digital VRM with DrMOS, Advanced Thermal Design with Enlarge Heatsink
Brand: GIGABYTE
SKU: 989071862
Price: 289.51 USD
Availability: InStock
Rating: 5 (2 reviews)

|2 ratings

Key item features

GIGABYTE AMD X570 AORUS Motherboard with 12+2 Phase Digital VRM with DrMOS, Advanced Thermal Design with Enlarge Heatsink

CPU: AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors
Chipset: AMD X570
Memory: 3rd Generation AMD Ryzen™ processors: Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules, 2nd Generation AMD Ryzen processors/AMD Ryzen with Radeon Vega Graphics processors: Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules, 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics: Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Maximum shared memory of 16 GB
Audio: Realtek ALC1200 codec, High Definition Audio, 2/4/5.1-channel, Support for S/PDIF Out
LAN: Intel GbE LAN chip (10/100/1000 Mbit)
Wireless Communication module: Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band, BLUETOOTH 4.2, Support for 11ac wireless standard and up to 433 Mbps data rate
Expansion Slots: Integrated in the CPU (PCIEX16): 3rd Generation AMD Ryzen processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16, 2nd Generation AMD Ryzen processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16, · 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/AMD Ryzen with Radeon Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8, Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4), 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0
Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Storage Interface: Integrated in the CPU (M2A_SOCKET): 3rd Generation AMD Ryzen processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support), · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen with Radeon Vega Graphics processors/AMD Ryzen with Radeon Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support), Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support), 6 x SATA 6Gb/s connectors, Support for RAID 0, RAID 1, and RAID 10
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
1. 4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
