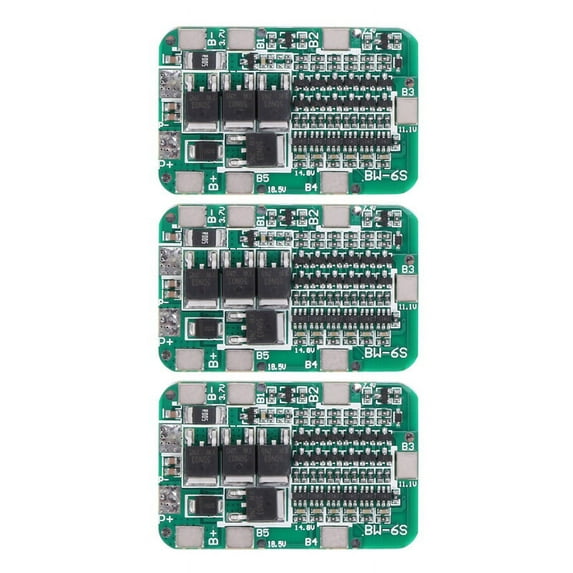

3X 6S 15A 24V PCB Charger Protection Board for 6 18650 Li-Ion Lithium Battery Cell Module DIY Kit

Charging voltage: 25.5V
Charging current: 15A (MAX)
Overcharge detection voltage: 4.28; 0.05V
Overcharge protection delay: 0.1S
Overcharge release voltage: 4.08; 0.05V
Over discharge detection voltage: 2.55; 0.08V
Overdischarge detection delay: 0.1S
The overdischarge release voltage: 2.9; 0.1V
Overcurrent detection voltage: 150mV
Overcurrent detection delay: 9MS
Overcurrent protection current: 30; 3A
Overcurrent protection release condition: Disconnect the load
Short circuit detection delay: 250uS
Main circuit conduction resistance: le;20mOmega;
Working current: le;30uA
Sleep current (battery over discharge) le;10uA
Temperature range: -30 / + 80 ;
Fine workmanship and .
For the rechargeable (generally refers to the lithium battery) from the protection of the integrated circuit board. Lithium battery (rechargeable type) so need protection.
As the lithium battery itself determines the material itself can not be overcharge, over discharge, overcurrent, short circuit and ultra-high temperature charge and discharge, so lithium battery lithium components always follow a protective resistor with a sampling resistor and a current fuse.
colour:green
Material:PC + Metal
Size: .50*30*2mm

Package Contents:
3 * 6S 15A Lithium protection board

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
