Hero image 0 of CyberPower Switched ATS PDU PDU24005 10-Outlets PDU, 0 of 3

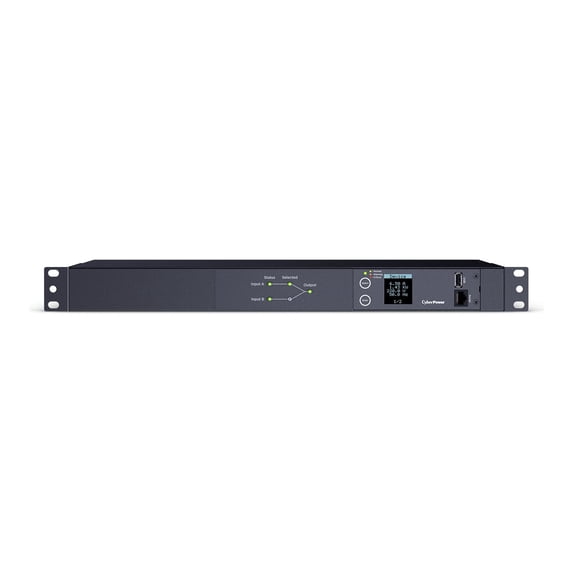

CyberPower Switched ATS PDU PDU24005 10-Outlets PDU
(No ratings yet)
Key item features
- ATS PDU24005 10-Outlets PDU
- User's Manual
- Cord Retention Tray
- Mounting Brackets
- Cable Ties
- Screw Kit
- Power Cord
- Serial Cable
- UL62368
- FCC Class A
- cTUVus
- CE
- UKCA
- Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.45 x 21.46 (cm)
- Physical Dimensions - (WxHxD) (in) : 17.05 x 1.75 x 8.45 (in)
- Physical Dimensions - (WxHxD) (mm) : 433 x 44 x 215 (mm)
- Weight (kg) : 3.45
- Weight (lb) : 7.6
- Shipping Dimensions - (WxHxD) (cm) : 54.99 x 12.45 x 39.8 (cm)
- Shipping - Dimensions (WxHxD, in) : 21.65 x 4.9 x 15.67 (in)
- Shipping - Dimensions (WxHxD, mm) : 549.91 x 124.46 x 398.02 (mm)
- Shipping - Weight (kg) : 6.28
- Shipping - Weight (lb) : 13.84
- Cord Length : 10 ft (3.0 m)
- Derated Input Current : 16 A
- Input Frequency Range : 50 Hz - 60 Hz
- Input Overload Protection : 20A x 2
- Input Plug Type : 2 x IEC-320 C20
- Maximum Input Current : 20A
- Nominal Input Voltage : 240 - 200 VAC
- Phase : Single Phase
- Plug Style : Straight (Socket)
- Nominal Output Voltage : 240 - 200 VAC
- Outlet Banks : 1
- Outlets - Total : 10
- Outlet Type COMPUTED : 8 - IEC-320 C13
- Overload Protection : None
- Power Source Transfer Time : 2-7 ms
- Source Failure Detection Time : 2-3 ms
- Hardware Connection Port : Serial (RJ45)
- LCD : Multifunction LCD
- LED Indicators : Source Status
- Upgradeable firmware : Yes
- Color : Black
- Cord Retention Tray/Cord Organizers : Yes
- External Site Ground Pin : Yes
- Form Factors Supported : 1U Rackmount
- Material of Construction : Metal
- Rack Height : 1U
- Style : Rackmount
- Operating Elevation : 0 - 13123 ft (0 - 4000 m)
- Operating Relative Humidity : 0 - 95 % (non-condensing)
- Operating Temperature : 32 - 113 °F (0 - 45 °C)
- Storage Elevation : 0 - 49213 ft (0 - 14999 m)
- Storage Temperature : 5 - 131 °F (-15 - 55 °C)
- Environmental : RoHS Compliant
- Safety : UL62368 : FCC Class A : cTUVus/CE/UKCA
- Extended Warranty Option : WEXT5YR-PDU1A
- Product Warranty : 3 Year Limited Warranty
Specs
- Outlets10
- Mount typeRack Mount
- OrientationHorizontal
- Size1U
- VoltsAC 200-240 V
- FeaturesBuilt-in Circuit Breaker, Single Phase
Current price is USD$440.41
Price when purchased online
Out of stock
How do you want your item?
Out of stock
About this item
Product details
Technical Information
PDU Type: Metered Auto Transfer Switch
Phase: Single Phase
Plug/Connector Type: IEC 60320 C20
Plug/Connector Detail: 2 x IEC 60320 C20
Receptacle Type: IEC 60320 C13, IEC 60320 C19
Receptacle Detail: 8 x IEC 60320 C13, 2 x IEC 60320 C19
Protection Type: Overload Protection, Circuit Breaker
Locking Receptacles: Cord Retention Tray, IEC 60320 C13, IEC 60320 C19
Features: LCD Display, LED Status Indicator
Power Description
Input Voltage: 230 V AC
Input Voltage Range: 200 V AC - 240 V AC
Output Voltage: 230 V AC
Output Voltage Range: 200 V AC - 240 V AC
Input Current: 20 A
Input Frequency: 60 Hz
Circuit Breaker: Yes
Interfaces/Ports
Network (RJ-45): Yes
Physical Characteristics
Color Family: Black
Product Color: Black
Product Material: Metal
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Form Factor: Rack
Rack Height: 1U
Cord Length: 10 ft
Height: 1.7"
Width: 17"
Depth: 8.5"
Weight (Approximate): 7.61 lb
Environmental Conditions
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 113°F (45°C)
Minimum Storage Temperature: 5°F (-15°C)
Maximum Storage Temperature: 131°F (55°C)
Miscellaneous
Package Contents:
Application/Usage: Data Center, Network Closet
Certifications & Standards:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
UL Listed: Yes
Warranty
Limited Warranty: 3 Year
PDU Type: Metered Auto Transfer Switch
Phase: Single Phase
Plug/Connector Type: IEC 60320 C20
Plug/Connector Detail: 2 x IEC 60320 C20
Receptacle Type: IEC 60320 C13, IEC 60320 C19
Receptacle Detail: 8 x IEC 60320 C13, 2 x IEC 60320 C19
Protection Type: Overload Protection, Circuit Breaker
Locking Receptacles: Cord Retention Tray, IEC 60320 C13, IEC 60320 C19
Features: LCD Display, LED Status Indicator
Power Description
Input Voltage: 230 V AC
Input Voltage Range: 200 V AC - 240 V AC
Output Voltage: 230 V AC
Output Voltage Range: 200 V AC - 240 V AC
Input Current: 20 A
Input Frequency: 60 Hz
Circuit Breaker: Yes
Interfaces/Ports
Network (RJ-45): Yes
Physical Characteristics
Color Family: Black
Product Color: Black
Product Material: Metal
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Form Factor: Rack
Rack Height: 1U
Cord Length: 10 ft
Height: 1.7"
Width: 17"
Depth: 8.5"
Weight (Approximate): 7.61 lb
Environmental Conditions
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 113°F (45°C)
Minimum Storage Temperature: 5°F (-15°C)
Maximum Storage Temperature: 131°F (55°C)
Miscellaneous
Package Contents:
- ATS PDU24005 10-Outlets PDU
- User's Manual
- Cord Retention Tray
- Mounting Brackets
- Cable Ties
- Screw Kit
- Power Cord
- Serial Cable
Application/Usage: Data Center, Network Closet
Certifications & Standards:
- UL62368
- FCC Class A
- cTUVus
- CE
- UKCA
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
UL Listed: Yes
Warranty
Limited Warranty: 3 Year
- ATS PDU24005 10-Outlets PDU
- User's Manual
- Cord Retention Tray
- Mounting Brackets
- Cable Ties
- Screw Kit
- Power Cord
- Serial Cable
- UL62368
- FCC Class A
- cTUVus
- CE
- UKCA
- Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.45 x 21.46 (cm)
- Physical Dimensions - (WxHxD) (in) : 17.05 x 1.75 x 8.45 (in)
- Physical Dimensions - (WxHxD) (mm) : 433 x 44 x 215 (mm)
- Weight (kg) : 3.45
- Weight (lb) : 7.6
- Shipping Dimensions - (WxHxD) (cm) : 54.99 x 12.45 x 39.8 (cm)
- Shipping - Dimensions (WxHxD, in) : 21.65 x 4.9 x 15.67 (in)
- Shipping - Dimensions (WxHxD, mm) : 549.91 x 124.46 x 398.02 (mm)
- Shipping - Weight (kg) : 6.28
- Shipping - Weight (lb) : 13.84
- Cord Length : 10 ft (3.0 m)
- Derated Input Current : 16 A
- Input Frequency Range : 50 Hz - 60 Hz
- Input Overload Protection : 20A x 2
- Input Plug Type : 2 x IEC-320 C20
- Maximum Input Current : 20A
- Nominal Input Voltage : 240 - 200 VAC
- Phase : Single Phase
- Plug Style : Straight (Socket)
- Nominal Output Voltage : 240 - 200 VAC
- Outlet Banks : 1
- Outlets - Total : 10
- Outlet Type COMPUTED : 8 - IEC-320 C13
- Overload Protection : None
- Power Source Transfer Time : 2-7 ms
- Source Failure Detection Time : 2-3 ms
- Hardware Connection Port : Serial (RJ45)
- LCD : Multifunction LCD
- LED Indicators : Source Status
- Upgradeable firmware : Yes
- Color : Black
- Cord Retention Tray/Cord Organizers : Yes
- External Site Ground Pin : Yes
- Form Factors Supported : 1U Rackmount
- Material of Construction : Metal
- Rack Height : 1U
- Style : Rackmount
- Operating Elevation : 0 - 13123 ft (0 - 4000 m)
- Operating Relative Humidity : 0 - 95 % (non-condensing)
- Operating Temperature : 32 - 113 °F (0 - 45 °C)
- Storage Elevation : 0 - 49213 ft (0 - 14999 m)
- Storage Temperature : 5 - 131 °F (-15 - 55 °C)
- Environmental : RoHS Compliant
- Safety : UL62368 : FCC Class A : cTUVus/CE/UKCA
- Extended Warranty Option : WEXT5YR-PDU1A
- Product Warranty : 3 Year Limited Warranty
