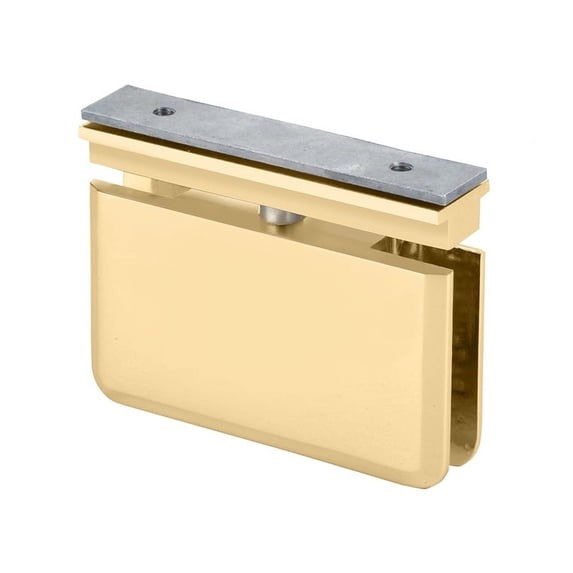

CRL PPH06SB Satin Brass Prima 06 Series EZ-Adjust Top Mount Hinge

CRL Prima Series Pivot Hinges are designed for use with 5/16" to 3/8" (8 to 10 mm) tempered safety glass, and provide an extra number of application possibilities. Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. Prima Series Pivot Hinges are self-centering, with four springs for maximum retention strength. The PPH01 Model is adaptable to our Deluxe Header System for shower enclosures not going all the way up to the ceiling. Our PPH06 Model is only compatible with our EZ-Adjust Header System. It includes an adaptor used with the EZ-Adjust Header System.
Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum width of 31" (787 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor and ceiling, or floor and header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required (PPH135 Model also requires two holes; PPH07 Model requires Cut-Out for Hinge and Hole for Clamp).
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).
Custom finishes are available on request. Contact the DK Hardware Sales Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
