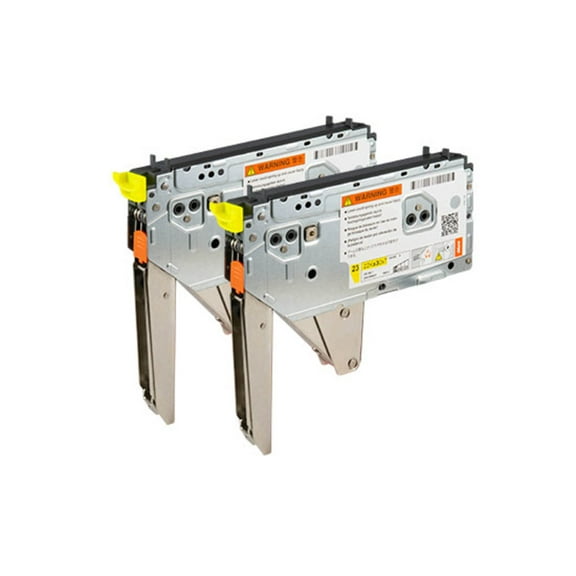

Blum 20K2500tna Aventos Hk Tip-On Lift Mechanism - Zinc Plated

Features:

• Designed to work with the TIP-ON mechanism
• Well suited for wall cabinets that are above a pantry or refrigerator
• Built in BLUMOTION insures the cabinet door closes silently and effortlessly
• Two lift mechanisms are required for proper lift function
• Lift mechanisms have a power factor range of 100 to 174
• Power factor is calculated by multiplying door weight with cabinet height
• A trial application is highly recommended if calculated power factor is borderline of lift mechanism's range
• Maximum door weight of 40 lbs for two lift mechanisms
• Include two (2) lift mechanism arms

Specifications:

• Cabinet Height: 11-13/16" to 24"
• Maximum Internal Cabinet Width: 72"
• Minimum Internal Cabinet Depth: 8-1/4"
• Power Factor: 100-174 (Power Factor = Cabinet Height x Door Weight)
• Opening Angle: 107 degrees

• 20K2500TNA (This Model): TIP-ON Lift Mechanism with Power Factor from 100 to 174
• 20K2700TNA: TIP-ON Lift Mechanism with Power Factor from 175 to 349
• 20K2900TNA: TIP-ON Lift Mechanism with Power Factor from 350 to 792
