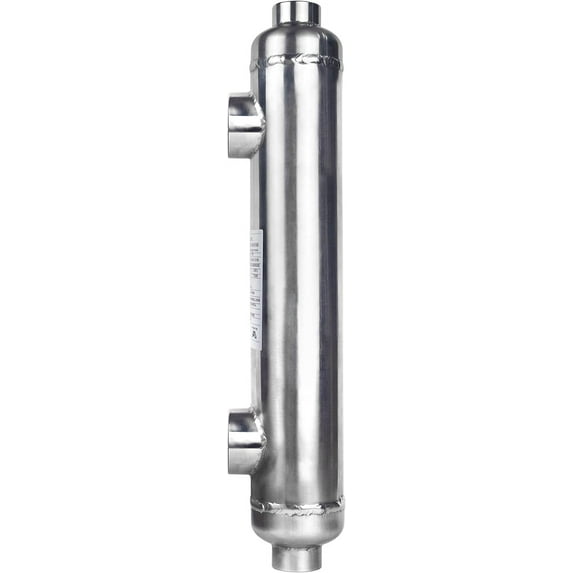

WiseWater Pool Heat Exchanger 155kBtu Stainless Steel 316L Same Side Ports 1 1/2" & 1" FPT for 11,900 Gallon for Spa/Solar/Pool Heating

Pool Heat Exchanger has an innovative spiral-twisted, corrugated tube design which is engineered to maximize solar or boiler energy, increasing the overall thermal efficiency of the system. The tube's design also ensures high velocities inside the unit, making this heat exchanger a very reliable, efficient and cost effective way to transfer heat indirectly between any hot water circuit, steam circuit and any pool or spa application.
This product is great for use with boilers, solar pool heating systems, and more.
We offer heat exchangers with capacities ranging from 55 k Btu to 4500 k Btu, made from either Stainless Steel 316L or Titanium, and with either opposite- or same-side ports.
Pool Capacity:
• Up to 14,000 US gallons
Specifications:
• BTU Capacity: 155,000 Btu/hr
• Pool Capacity: 11,900 Gal.
• Wattage: 45KW
• Heat Transfer Area: 3.552 ft2
• Hot Water Flow Volume: 8.46 GPM
• Hot Water Pressure Drop: 1.10psig
• Cold Water Flow Volume: 62.66 GPM
• Cold Water Pressure Drop: 1.58psi
• Min. & Max. Working Temp.: -19F – 406F
• Design Pressure: 190psi
• Test Pressure: 285psi
• Shell (Pool) / Tube (Hot) Connections: 1 1/2"" FPT / 1"" FPT
• C-C Distance: 254mm // 10""
Dimensions: 17.71"" x 2.99""
Applications:
• Pool/Spa/Hot Tub Heating • Residential and Industrial Applications • Water Heating • Forced Air Heating Systems • Floor Heating • Snow Melting • Solar Hot Water Heating • Outdoor Wood Furnaces • Solar Pool Heating System"
