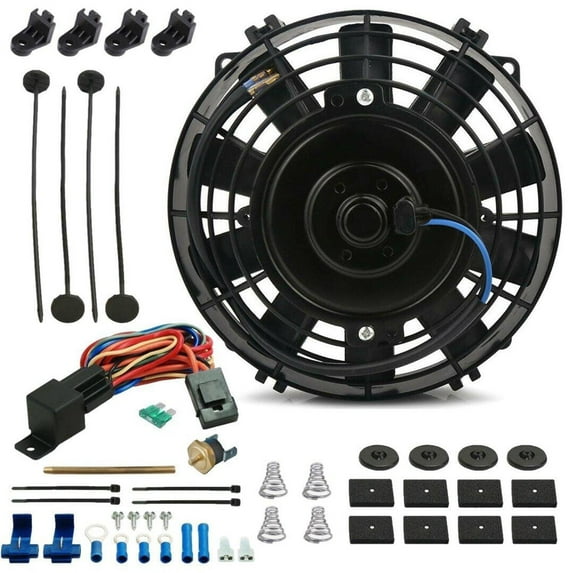

7-8 Inch 90w Electric Trans Cooler Fan Push-In Probe Thermostat Switch

Electric Fan:

• Reversible 12 volt high performance 7-8 inch electric cooling fan.
• Upgraded 90 watt motor draws 7.5 amps, producing over 513 CFM.
• Configured as air puller by default and reversible to an air pusher.
• Includes mounting bracket feet and complete install fin tie strap kit.
• Measures 8.5" x 7.75" x 2.4" thickness at center and 1.4" at edge.

Wiring Kit:

• Universal automotive electric fan 5-pin 40A relay switch harness kit.
• 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
• Maximum 30 amp continuous draw with 30A in-line fuse protection.
• A/C override or manual toggle switch wire built directly into harness.
• Installation instructions, wiring diagram and components included.

Thermostat:

• Universal dual pin electric cooling fan powering thermostat switch.
• Solid brass push-in fin probe temperature sensor can be cut to size.
• Preset to power fan or 12v accessory at the selected temperature.
• Probe pins the switch to radiator, engine or transmission cooler fins.
• Measures temp of auto liquids including oil, water and coolant fluid.
