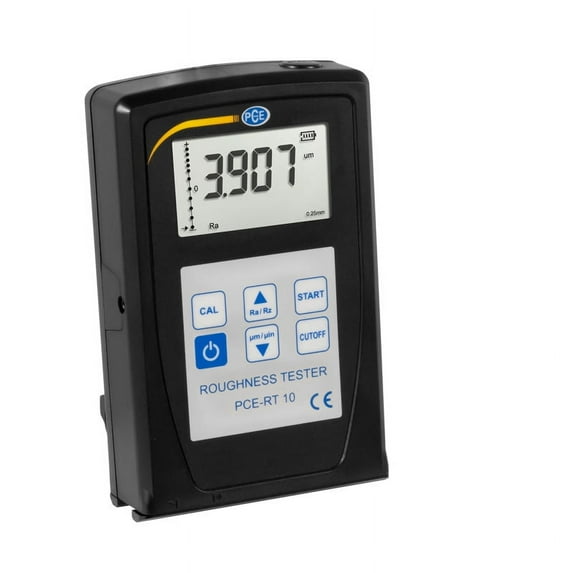

Material Surface Roughness Tester PCE-RT 10

Name: Material Surface Roughness Tester PCE-RT 10
Brand: PCE Instruments
SKU: 949492410
Price: 1984 USD
Availability: InStock

(No ratings yet)

Key item features

- Standards: GB/T6062, ISO4287, DIN4768, JIS B, ANSI46.1
- Display: LCD
- Parameters: Ra, Rz
- Range: Ra: 0.05~10.00 µm Rz: 0.1~50.0 µm
- Accuracy: ±15%
- Fluctuation of Display Value: 10%
- Resolution: 0.001 / 0.01 / 0.1

Sensor
- Radius of Probe Pin: 10 µm
- Material of Probe Pin: Diamond
- Measurement Force of Probe: 16 mN(1.6gf)
- Probe Angle: 90º
- Vertical Radius of Guiding Head: 48 mm
- Maximum Driving Stroke: 12.5 mm / 0.5 inch
- Cutoff length(l): 0.25 mm, 0.8 mm, 2.5 mm

Driving Speed
- Sampling when Length = 0.25 mm,Vt = 0.135 mm/s
- Sampling when Length =0.8 mm, Vt = 0.5 mm/s
- Sampling when Length =2.5 mm,Vt = 1 mm/s
- Returning Vt = 1 mm/s

- Evaluation Length: 1~2L Optional
- Ra and Rz measurement range
- Induction principle
- LCD display with background lights
- With threshold function
- Easy to transport
- Easy handling
- Diamond sensor
- Low fluctuation on display

Specs

Brand
PCE Instruments
Model
PCE-RT 10
Color
Black
Pieces
1

Current price is $1,984.00

Price when purchased online

Free shipping
Free 30-day returns

Add a protection plan

(Only one option can be selected at a time)

3-Year plan - $58.00

4-Year plan - $77.00

How do you want your item?

Ships to

Arrives between May 28 - May 30

Sold and shipped by PCE Instruments

Report an issue with this seller

Free 30-day returns

About this item

Product details

The Material Surface Roughness Tester PCE-RT 10 is a small, lightweight device with simple navigation. Despite the fact that the device functions on a very complex and elaborate level, the measurement results can be gained quickly and easily. Due to its rugged design the device has a long lifetime. This device is calibrated on ISO, DIN, ABSI and JIS standards. The surface texture meter can be applied for various mechanical manufacturing processes as a controlling equipment. The device indicates all calculated measurement results on its LCD display any time. In order to measure the roughness of a surface, the sensor is to be placed onto that surface. Afterwards the sensor samples evenly the surface following its guide rail. Now the device will calculate the measuring values. Thus the indicated values are a result of the sensor's movement, while it is induced with electricity. The fast DSP processing supports quick measurements results, which are then shown on the surface texture meter's display.
