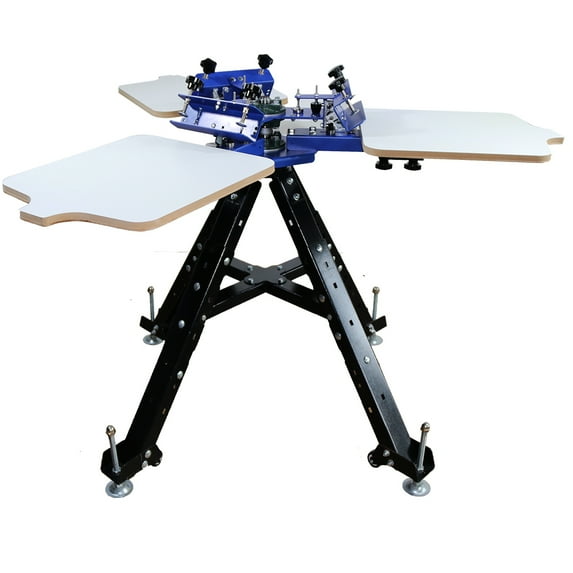

TECHTONGDA 3 Color 3 Station Double Rotating Screen Printing Press Adjustable Height Silk Printer

✔Description:
This machine is used for printing T-shirt or cloth products within three colors, equipped with three independent printing stations.
The machina adopts adjustable height rack,The height of the rack can be adjusted according to the operator's height and working habits: The adjustment range from the ground is 58-109cm;
The operator can work by standing or sitting on a chair according to the height of the rack.


✔Function Introduction：
1:Casters are installed at the bottom of the rack to move the machine at any time.
2:The machine covers an area of 160 cm in diameter.
3:Pallet and screen frame part can be 360 degrees of arbitrary rotation.
4:Screen frame clamp width is 240 mm, 68 mm high, suitable for all kinds of screen frame height within 50 mm.
5:Clamp can be adjusted by 2cm according to the substrate height.
6:Using magnet adsorption control screen frame lift balance.
7:The pallet can move backwards or forwards within 10cm(4 inch).


✔Specification：
Type: 3 Color 3 Station
Width of the screen frame clamp: 9.4inch
Height of the screen frame clamp: 2.7inch
Pallet size: 22×18×0.7(thickness)inch
Suitable for screen frame thickness: 2inch
Stand height range: 23-29inch, 27-32inch, 30-36inch, 33-39inch and 37-43inch


✔Special tips:
The screen plate lift up is controlled by the magnet installed on the back of the support plate, adjust the distance between the feet and the iron plate, so that the support plate and the main shaft iron plate can keep parallel, keep the magnet and shelf iron plate 1-2 mm distance, to prevent the magnet contact with the iron plate directly and broke the magnet.


✔Item Included:006195
