12A Constant Current Boost Converter Efficient Power Supply Module for Electronics Power Module

Specifications:

Quiescent operating current: about 10mA (measured when 12V rises to 20V, the higher the output voltage, the higher the quiescent current will be)
Output voltage: 10-60V continuously adjustable (suitable for applications where the input voltage is lower than the output voltage, and cannot be stepped down.)
Output current: 12A MAX exceeds 7A or the module temperature exceeds 65 degrees, please strengthen the heat dissipation (related to the input and output voltage difference, the greater the voltage difference, the smaller the output current)
Constant current range: 0.2-12A
Maximum output power: = input voltage*10A, such as: input 12V*5A=60W, input 24V*5A=120W, input 36V*5A=180W, input 48V*5A=240W,
Working frequency: 150KHz
Conversion efficiency: up to 96% (efficiency is related to input, output voltage, current, and voltage difference)
Overcurrent protection: Yes (The input exceeds 15A, the output voltage will be automatically reduced, and there is a certain range of error.)
Input reverse connection protection: no (if necessary, please connect a diode in series with the input)
Installation method: 4 2.5mm screw holes
Wiring method: terminal block
Output anti-backflow protection: none (for example, if it is used for charging or the load has its own power, an additional 2-pole tube is required)

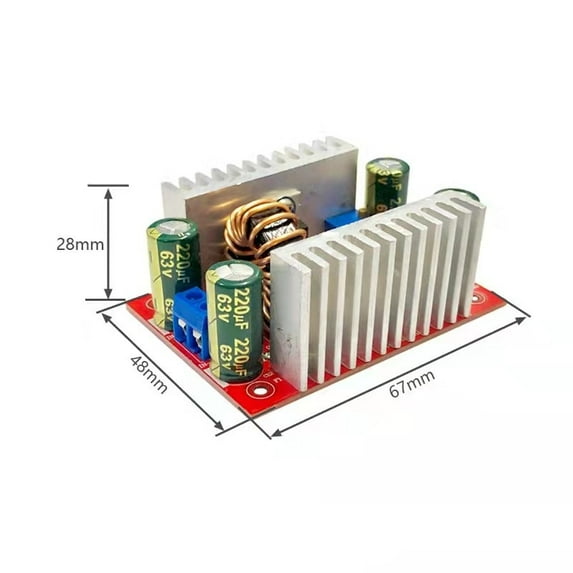

Size: Length 67mm Width 48mm Height 28mm


Package included:
1*Boost Converter

Note:
Please do not adjust the current in a short-circuit manner, and the circuit structure of the booster module cannot be adjusted in a short-circuit manner.
