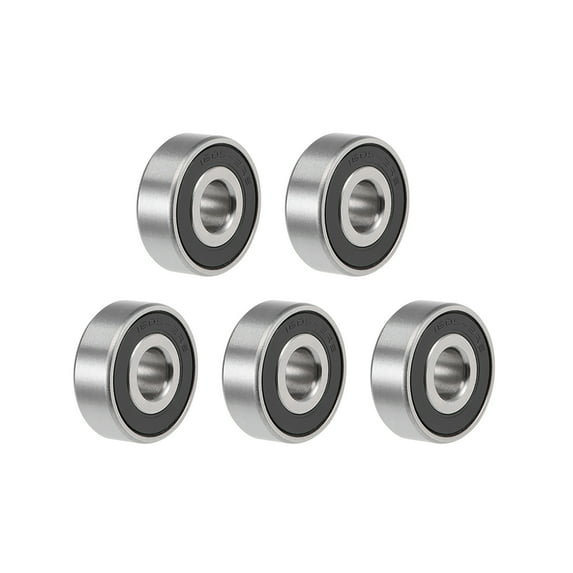

Deep Groove Ball Bearings Inch Double Sealed Chrome Steel ABEC-1 Z2, 5/16"x29/32"x5/16"

NOTE锛

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description:

• Single-row, pre-lubricated, normal accuracy.
• Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
• With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
• These cost-effective bearings are widely used in areas with low requirements for Mohs hardness.
• Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.


Selecting Guide:
Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.
Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

Specification:
Model: 1605-2RS
Seal Type: Double Sealed
Inner Race/Outer Race Material: Chromium Steel (GCr15)
Cage Material: Stamping Steel
Inner Diameter (d): 5/16inch
Outer Diameter (D): 29/32inch
Thickness (B): 5/16inch
Dynamic Load Rating (Cr): 745N
Static Load Rating (Cor): 315N
Accuracy Class: P0 (ABEC-1)
Noise Level: Z2
Number of Pack: 5Pcs
