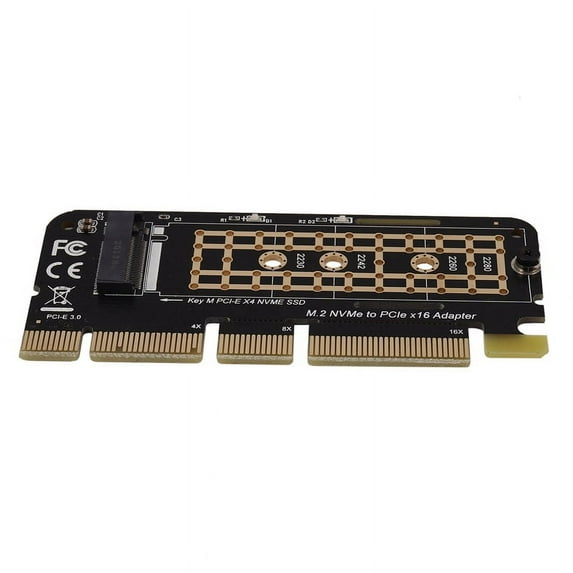

M.2 NVMe SSD To PCI-E X16 Converter Card NGFF M-Key M.2 PCIe PCI-Express X4/X8/X16 HDD Hard Drive Solid State Disk Adapter Card

Performance: Solving the reading and writing of NVMe M.2 interface SSD
Input interface: M-Key M.2 (Not Support SATA protocol M.2 NGFF)
Output Interface: PCI-e X16
Support Slot: PCI-e X4/X8/X16 (Not Support X1)
NVMe SSD installation conditions:
1.PCI-E X4/X8/X16 are available;
2.Please install for Win10 system, for Win7 needs to install the driver, and the speed does not go up.
3.The motherboard that does not support the NVME protocol cannot be used as a system disk and can only be used as a storage disk.
About the motherboard:
1.for motherboard chipset:
B250/B150/H170/Z170, as long as the motherboard with M.2 interface generally supports NVMe.
Support part of the Z97, specifically query the official website or BIOS below the Nvme option.
B85/Z87 needs to update BIOS and be supported, most B85 does not provide M.2 Interface, you can use this adapter card.
2.for AMD motherboard chipset:
Support for the B350/X370/X399/A320 must be supported by Ryzen's CPU motherboard.
Warm Tip:
M.2 NGFF to PCI-E X16 converter card. Use this converter card to transmit the normal PCI-E X4 X8 X16 interface to M.2 NGFF interface. There are 4 fixed holes on the board, 22*32mm, 22*42 mm, 22*60 mm, 22*80 mm.
size:95 X 40 X 3mm
Material:Metal+pc
colour:black
Package Contents:
1 * M.2 to PCI-E3.0X16 adapter card
1 * set of silicone pads
1 * screwdriver
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
