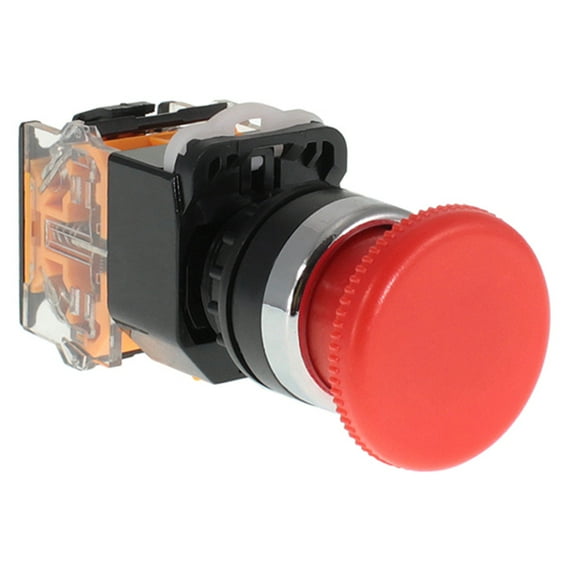

Shopcorp Mushroom Head Emergency Push Button for Home or Industrial Equipment and Mount Panels in Operating Rooms and Distribution Boxes, Spring Return (1 Red)

Industrial quality mushroom head type button that serves as an emergency stop push button or E-Stop, a fail-safe control switch that provides
both safety for the machinery and for the person using it. Comes with a spring return or a stay-put action type. Highly visible in color and shape
with a mushroom head design to provide an easy and fast access to it, easy to operate in emergency situations.

Useful for different kinds of industrial installations. Widely used for control of electromagnetic starter, contactor and relay, or other circuit for
controlling use. Can be used in mount panels, machines and consoles of textile equipment and operating rooms or distribution boxes for ships,
airplanes or cities. Includes 4 screw terminals and 1 Normally Open (NO) and 1 Normally Closed (NC) contacts. It uses a momentary action
type mechanism or a stay-put system that requires a turn-to-release once it has been pushed.

Specifications
Model: LA38-11M, LA38-11ZS
Mount Hole Diameter: 22 mm / 0.87 " (7/8 ")
Fit Panel Thickness: Max 4 mm / 0.16 "
Working AC Frequency: 50Hz-60Hz
AC 50Hz 380V, DC220V
250VAC 3A SPDT NO NC
Contact Resistance: 50Ω
Insulation Resistance: 100MΩ
Overall Size: 75 mm x 35 mm
Material: ABS
Color: Red/Green

Applicable in the electric circuit of AC 50HZ 380V, DC220V electro-magnetic starters, relays, contactors, electric controls, etc.
