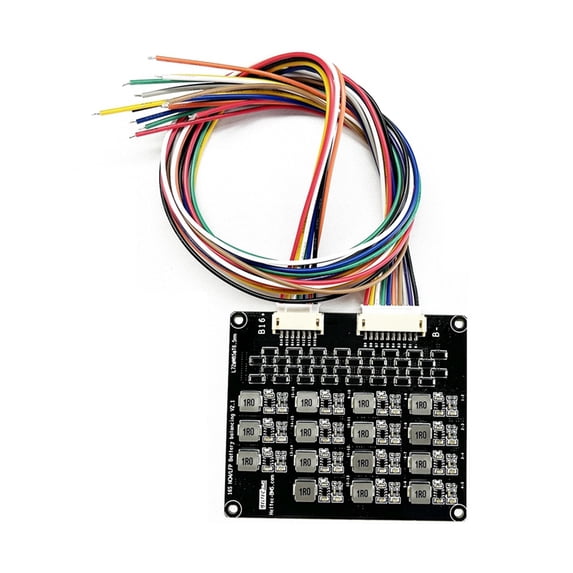

Symkmb 1.2A Balance Li-Ion Lifepo4 Lithium Battery Active Equalizer Balancer Energy Transfer 16S PCB

Note:
This Link is Inductive Active Balancer:
Will only balance two nearby batteries which voltage defference bigger than 0.2V
Inductive energy transfer equalization board, high current 1.2A energy transfer battery voltage balancer, significantly balance battery voltage, improve the overall efficiency of the battery pack!
Balance indication:
1. When the equalization light is on, the equalization work is turned on.
2. The equalization light goes out, the equalization circuit sleeps,
3. The equalization light flashes, indication is lost, or the circuit is faulty.
Equilibrium current:
Adjacent pressure difference is 0.1V or more (current is about 0.5-0.7A);
Adjacent pressure difference is above 0.2V (maximum equalization current is 1.2A);
The smaller the differential pressure, the smaller the equalization current.
Wiring definition:
B-, the total negative pole of the battery pack (the negative pole of the first battery)
B1, the positive electrode of the first battery
B2, the positive electrode of the second battery
B3...and so on.
Note:Due to different production batches, there may be slight differences in the products, which will not affect normal use.The color of the harness is random and cannot be specified.
Type:16S
Colour:As Shown
Material:PCB

Package Contents:
1 * Equalizer transfer board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
