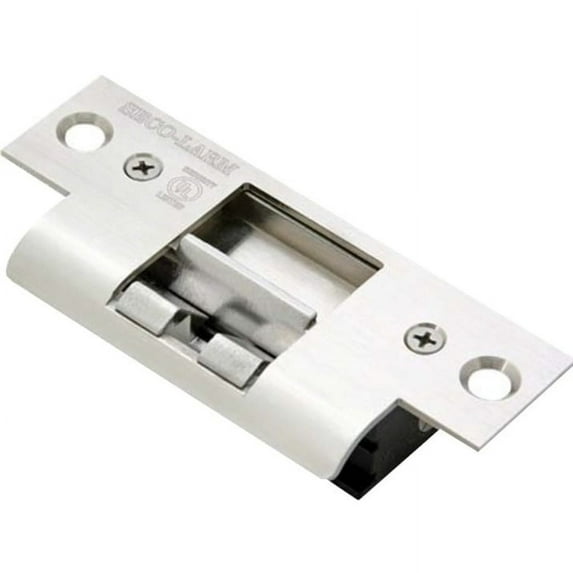

Seco-Larm SD-995C-D3Q No-Cut Electric Door Strike, Fail-Safe/Fail-Secure Selectable, 1,500 lbs Holding Force, 12/24 VDC

convert a cylindrical lock set into an electronic access controlled locking system with the seco-larm door strike, no cut. this door strike is field selectable for fail safe or fail secure operation and can be used with just about any cylindrical door locking system. it features a reversible, non-handed design, allowing it to fit on either a right-handed or left-handed door. its unique, shallow design makes it ideal for use with most metal doors. it's powered by a solenoid (not a buzzer coil), has a static strength of 1,500 lbs., and is built with a stainless-steel keeper for strength and durability. included is a door strike, 2 electrical connectors, 2 wiring connectors, 2 mounting tabs, 2 wood screws, 4 machine screws, 2 machine screws (narrow), 2 security screws, 2 anchor nuts, and a manual. notes: for indoor use only; this strike has no horizontal or vertical adjustments. specs: manufacturer part #: sd-995c-d3q. operating voltage: 12/24 vdc. current draw: 12vdc; 24vdc. latch throw: 9/16 inch (15mm). keeper width: 1-7/16 inch (36mm). static strength: 1,500 lb. (680kg). dynamic strength: 70 lb.-ft (9.68kg-m). endurance: 100,000 cycles (ul tested); 1,000,000 cycles (factory tested). operating temperature: 32 degrees to 120 degrees fahrenheit (0 degrees to 49 degrees celsius). operating humidity: 0 to 85 percent. dimensions: 4-7/8 x 1-1/4 x 1-1/16 inches (124 x 32 x 27.5 mm). credentials: ce, rohs. warranty: 3 years.
SKU:ADIB07G58CS9F
